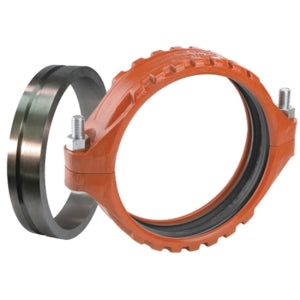

Victaulic W140077PE1 W77 Orange Enamel Painted Ductile Iron Flexible Coupling With Grade E Gasket, 14 IN, 20.63 IN L, Grooved

Product Description

The Victaulic W140077PE1 is a flexible coupling designed to connect pipes efficiently. This particular model features a grade E gasket to provide a reliable seal. The coupling is made from ductile iron and has an orange enamel finish.

• Compatible with grooved connections
• Accommodates pipe movements effectively
• Maximum pressure rating of 350 PSI

Product Highlights

This flexible coupling offers significant advantages for installation and maintenance in plumbing systems. It helps in managing thermal expansions and vibrations.

Product Information

Standard Information

• Brand: Victaulic
• MPN: W140077PE1

Technical Specifications

• Nominal Size: 14 inches
• Length: 20.63 inches
• Material: Ductile Iron
• Connection Type: Grooved
• Maximum Pressure: 350 PSI
• Temperature Range: -30 to 230 degrees Fahrenheit
• End Style: Grooved
• Outside Diameter: 14 inches
