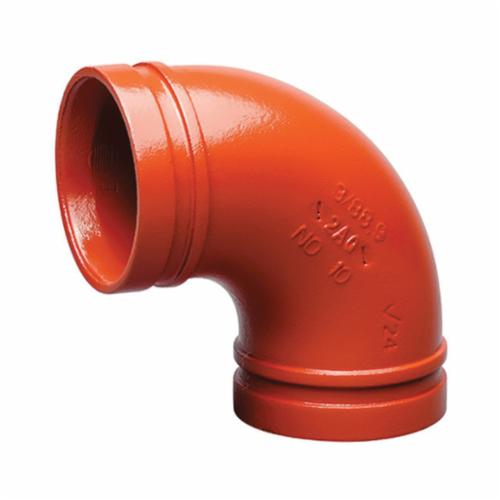

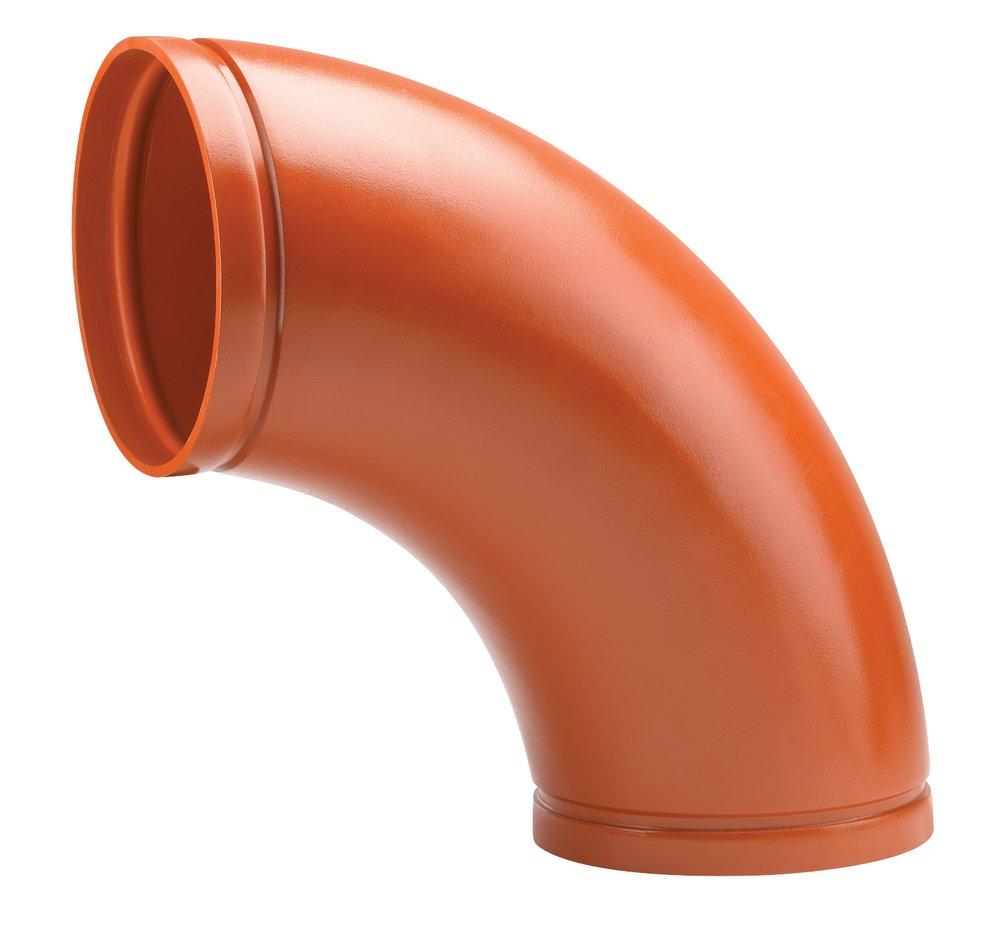

Victaulic W140010P00 FireLock™ Style W10 14 in. Grooved 90 Degree Elbow

Product Description

The VICTAULIC W140010P00 FireLock™ Style W10 is a 14 in. grooved 90-degree elbow. All fittings are supplied with grooves for fast installation. It connects pipe, provides a change in direction, and adapts sizes or components. Pressure rated up to 350 psi.

• Standard fitting pressure ratings conform to ratings of installed coupling
• All fittings supplied with grooves for fast installation
• Sizes from 3 – 36" / DN80 –DN900

Product Highlights

The Victaulic W140010P00 is a 14 in. grooved 90 degree elbow with grooves for fast installation.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: W140010P00

Technical Specifications

• End Style: Grooved
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 14 In
• Material: Ductile Iron
• Series: 10 Series
• Finish: Orange Enamel
• Sub Brand: AGS®
• Item Name: Standard Radius 90 DEG Elbow
• Series/Model: Model W10
• Connection Type: Grooved End
• Material Standard: ASTM A536 Grade 65-45-12
• Method Of Manufacturer: Cast
• Outside Diameter: 14 IN
• Maximum Pressure: 350 PSI
• Other Physical Dimension: 14 IN Center To End
• Domestic/Import: Import
• Nominal: 14 in
• OD: 14 in
• Connection: Grooved
