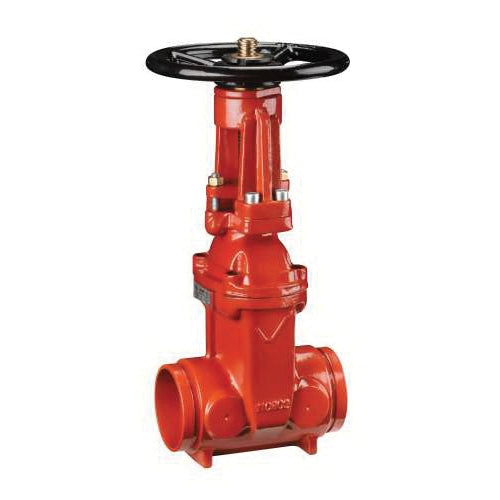

Victaulic V100771P01 FireLock 771 Fusion Bonded Epoxy Coating Ductile Iron Gate Valve 10 in

Product Description

The Victaulic V100771P01 is a ductile iron gate valve designed for fire protection. It features a fusion bonded epoxy coating that enhances durability and corrosion resistance. This valve is suitable for use in fire lines, providing a positive shut-off with a visual indicator of its open or closed status.

• Outside stem and yoke design
• EPDM body gasket and O-ring seals
• cULus listed, FM approved for safety

Product Highlights

This valve is ideal for applications needing reliable shut-off in fire protection systems.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI771H.10

Technical Specifications

• Connection Size: 10 in
• Connection Type: Grooved
• Dimension: 12.992 in L
• Finish: Fusion Bonded Epoxy Coated
• Item Name: Gate Valve
• Material: Ductile Iron
• Model: 771
• Operator Type: Handwheel
• Pressure Rating: 250 psi
• Stem Material: Brass
• Sub Brand: FireLock
