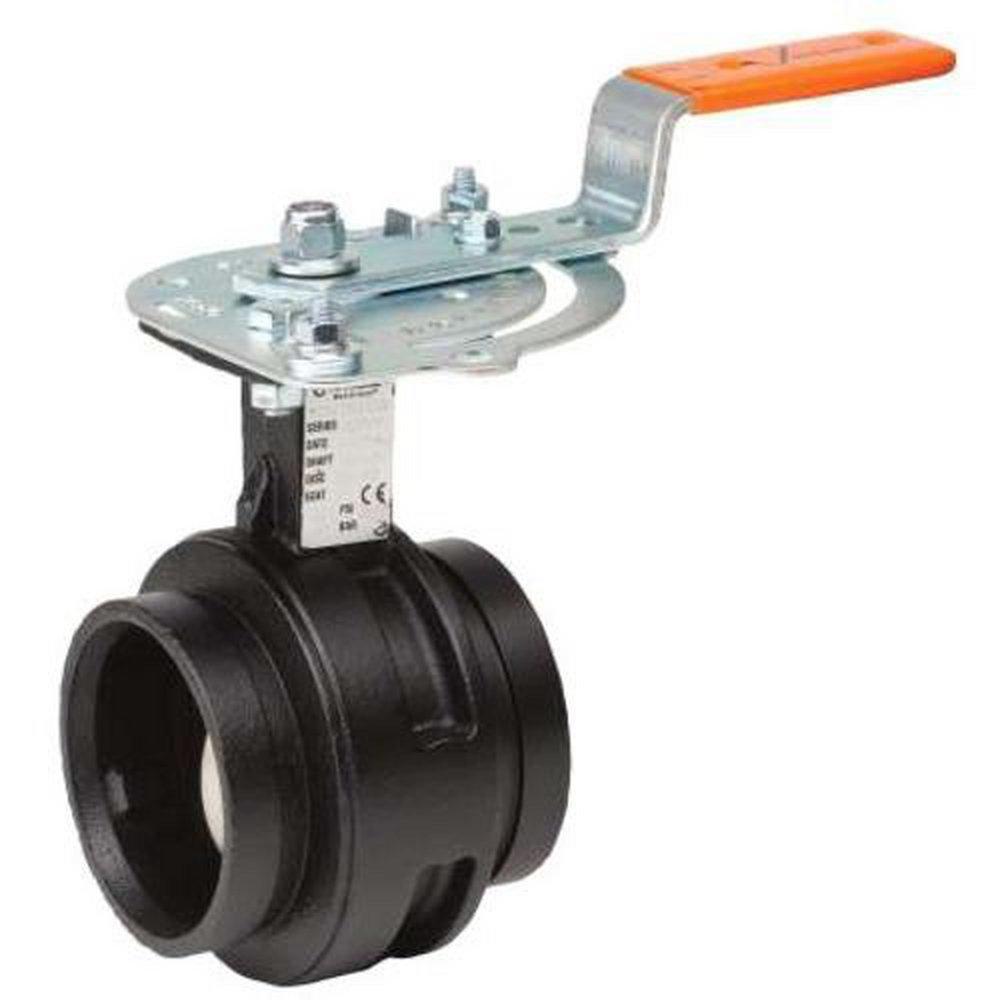

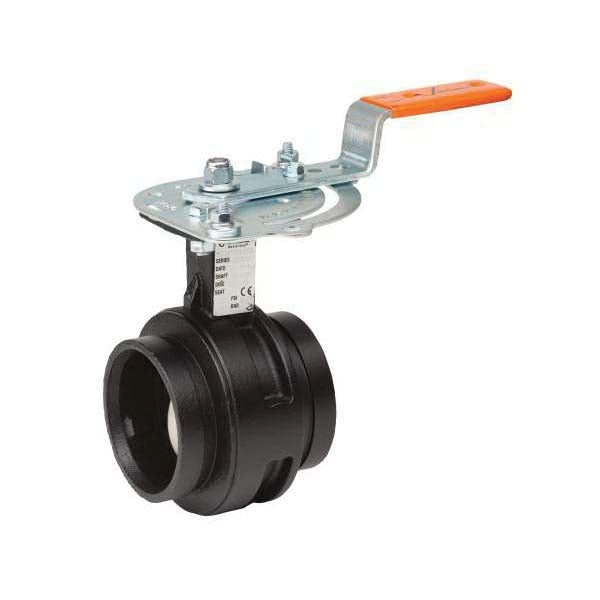

Victaulic V100761SE2 Vic-300 MasterSeal 10 in Ductile Iron Grooved EPDM 10 Position Handle with Memory Stop Butterfly Valve

Product Description

The Victaulic V100761SE2 is a butterfly valve designed for bi-directional flow in various piping systems. This product features a ten-position handle with a memory stop mechanism for optimal control. Ideal for use in carbon steel, ductile iron, and plastic piping systems.

• Designed for bi-directional, dead end services to full working pressure.
• Capable of withstanding pressures up to three hundred psi.
• Durable ductile iron construction with EPDM sealing material.

Product Highlights

This butterfly valve meets the requirements of ABS standards and offers bubble-tight shut-off.

Product Information

Standard Information

• Brand: Victaulic
• Model: 761

Technical Specifications

• Connection Size: 10 inches
• Connection Type: Grooved
• Dimension: 6.4 inches L x 12-1/4 inches Dia
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Co-efficient: 5800 Cv
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 230 degrees F
