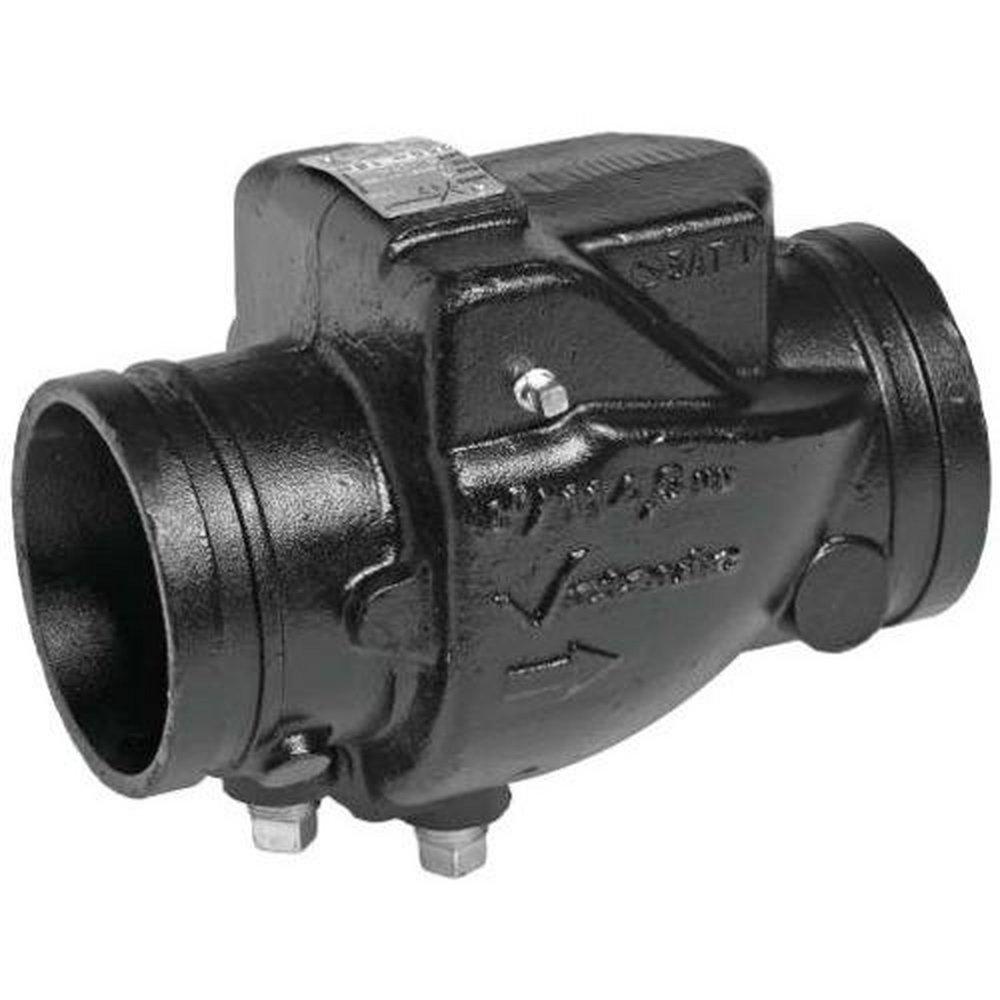

Victaulic V100717PE0 FireLock® Series 717 10 in Ductile Iron Grooved Sprinkler Check Valve

Product Description

The Victaulic V100717PE0 is a FireLock® Series 717 check valve designed for fire protection systems. This valve features a grooved connection and is made from ductile iron, ensuring strength and reliability.

• Pressure rating of 365 psi.
• Elastomer encapsulated disc prevents backflow.
• Rated for ambient temperature use in fire protection systems.

Product Highlights

This valve is designed for both vertical and horizontal installation. It includes grooved ends and optional pressure taps for upstream and downstream monitoring.

Product Information

Standard Information

• Brand: Victaulic
• MPN: V100717PE0

Technical Specifications

• Connection Size: 10 in
• Connection Type: Grooved
• Dimension: 17 in L x 12 in W x 13.78 in H
• Disc Material: Elastomer
• Finish: Painted
• Material: Ductile Iron
• Model: 717
• Pressure Rating: 365 psi
• Seat Material: Electroless Nickel Plating Ductile Iron
• Sub Brand: FireLock
• Standards/Certifications: cULus listed, FM, LPCB, VdS, CTP approved
• Applications: For fire protection systems
