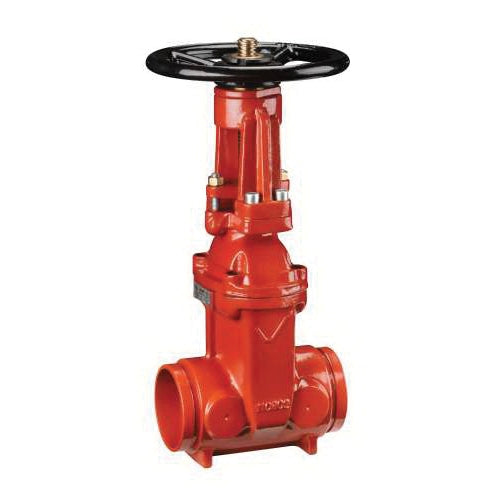

Victaulic V080771P01 FireLock 771 Fusion Bonded Epoxy Coating Ductile Iron Gate Valve 8 in

Product Description

The Victaulic V080771P01 FireLock is a ductile iron gate valve designed for efficient fire protection systems. This valve is ideal for applications that require a reliable positive shut-off. It features a fusion bonded epoxy coating which provides durability and resistance to corrosion. This model measures eight inches and has a grooved connection type.

• Outside stem and yoke for easy visibility of valve position.
• EPDM body gasket and O-ring seals enhance the valve's reliability and longevity.
• Standards: cULus listed, FM approved for safety performance.

Product Highlights

This gate valve is suited for IPS carbon steel pipes, ensuring essential functionality in fire protection systems.

Product Information

Standard Information

• Brand: Victaulic
• Sub Brand: FireLock

Technical Specifications

• Model: 771
• Item Name: Gate Valve
• Connection Size: 8 inches
• Connection Type: Grooved
• Dimension: 11.496 inches length
• Finish: Fusion Bonded Epoxy Coated
• Material: Ductile Iron
• Pressure Rating: 250 psi
• Operator Type: Handwheel
• Stem Material: Brass
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM B62, ASTM B16
• Applications: For IPS carbon steel pipe
• Standards/Certifications: cULus listed, FM approved
