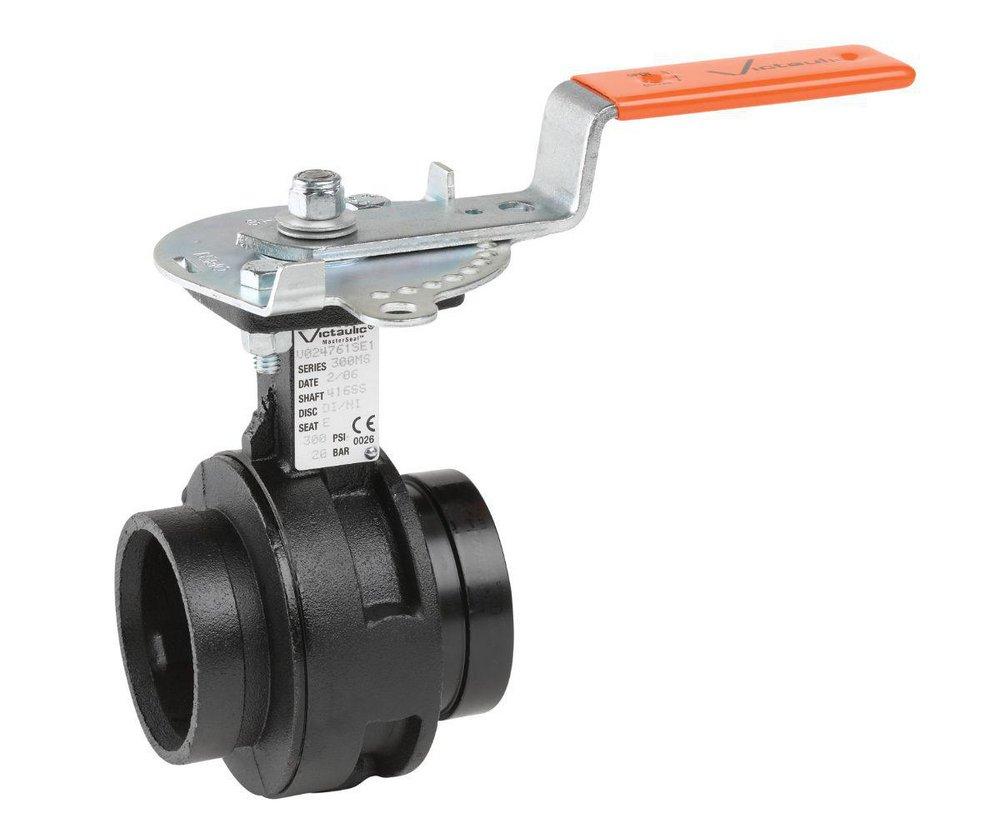

Victaulic V080761SE2 Vic-300 MasterSeal 8 in Ductile Iron EPDM Locking Lever Handle Butterfly Valve

Product Description

The Victaulic V080761SE2 is an 8-inch butterfly valve designed for use in various piping systems, including carbon steel and ductile iron. This valve features a locking lever handle for easy operation and is suitable for both bi-directional and dead-end services at full working pressure.

• Constructed with ductile iron and EPDM seal for durability.
• Pressure rating of up to 300 psi.
• Temperature range of -30 to 230 degrees Fahrenheit.

Product Highlights

This valve accommodates a wide range of applications, making it ideal for HVAC and plumbing systems.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VV080761SE2

Technical Specifications

• Connection Size: 8 inches
• Connection Type: Grooved
• Dimension: 5.33 inches long x 10 inches diameter
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Coefficient: 3400 Cv
• Seal Material: EPDM
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 230 degrees Fahrenheit
