Product Description

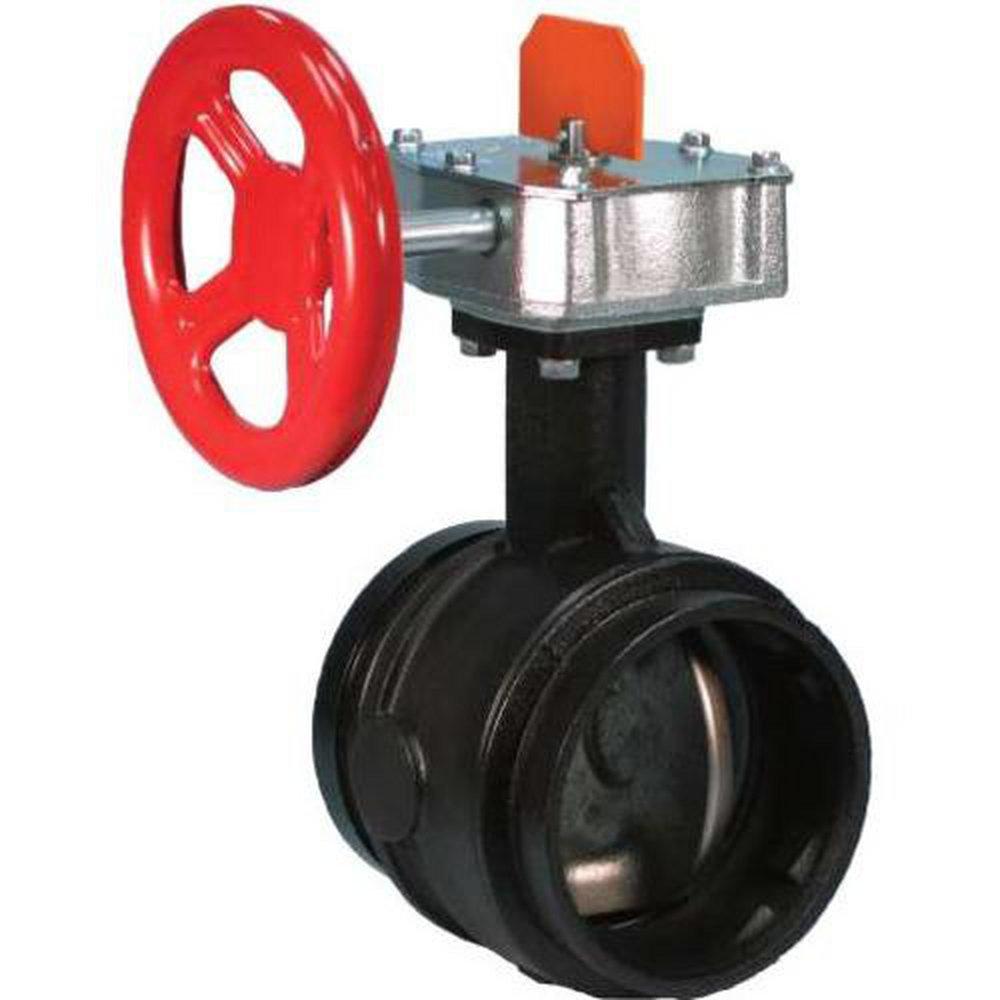

The Victaulic V080707900 is a FireLock Style 707C butterfly valve designed for fire protection applications. It has an 8-inch connection and features a durable ductile iron body with an EPDM seat. This valve is suited for both indoor and outdoor use, offering reliable operation in critical fire safety systems. It is built to maintain a supervised closed position during normal operations.
- Meets NFPA 20 and NFPA 14 standards for fire protection services.
- Pressure tested up to 300 psi.
- Constructed with a weatherproof actuator for versatile application.
Product Highlights
The 707C butterfly valve is suited for fire pump metering lines and rooftop test units.
Product Information
Standard Information
-
Brand: Victaulic
-
Model: 707C
Technical Specifications
-
Connection Size: 8 in
-
Connection Type: Grooved
-
Dimension: 5.33 in L x 18.6 in H
-
Disc Material: Ductile Iron
-
Finish: Black Alkyd Enamel Coated
-
Flow Coefficient: 3400 Cv
-
Material Specifications: ASTM A536, Grade 65-45-12, ASTM B733, ASTM A582, C36000
-
Pressure Rating: 300 psi
-
Seat Material: Grade E EPDM
-
Stem Material: 416 Stainless Steel
-
Sub Brand: FireLock
