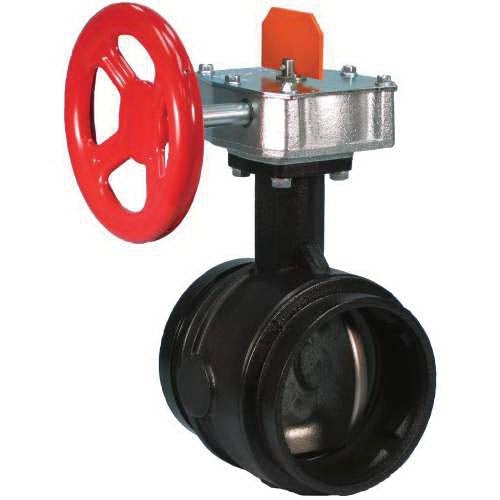

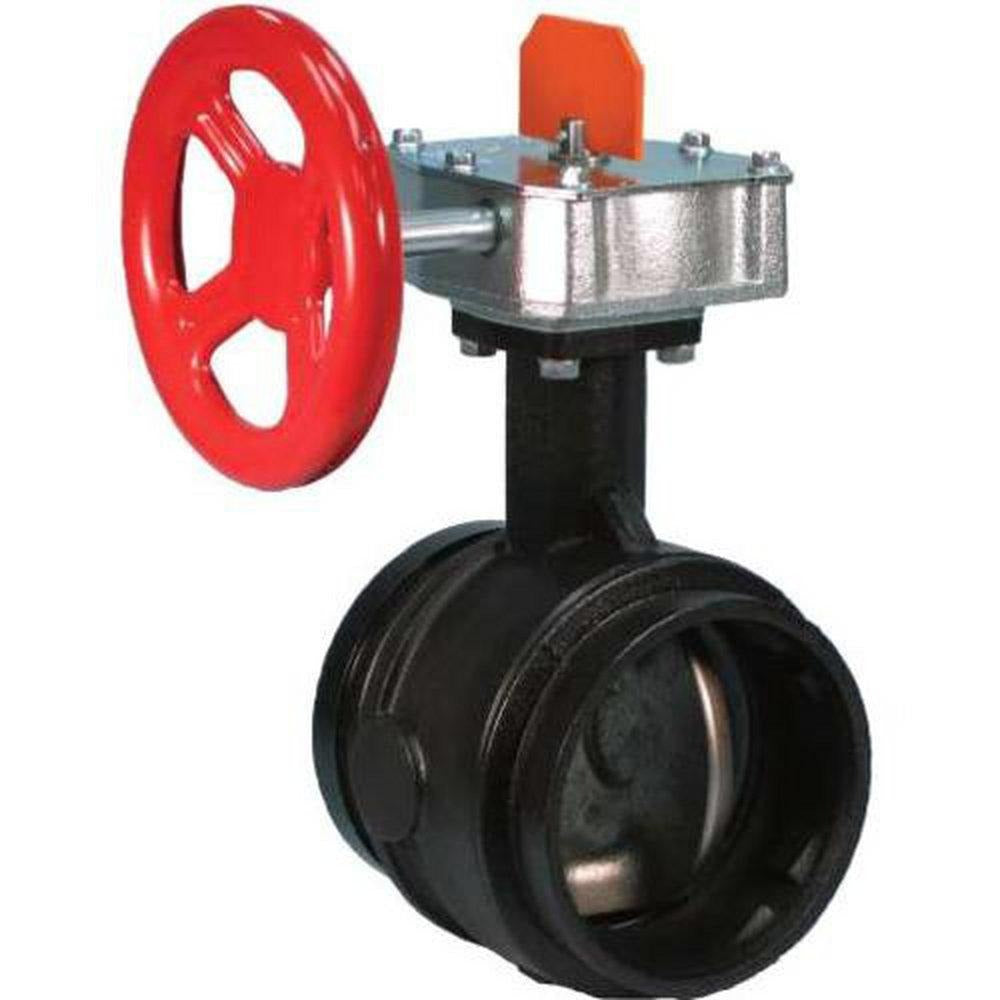

VICTAULIC Victaulic V080705100 FireLock Style 705 Ductile Iron Grooved EPDM Seat Hand Wheel Butterfly Valve (8 in.)
VICTAULIC Victaulic V080705100 FireLock Style 705 Ductile Iron Grooved EPDM Seat Hand Wheel Butterfly Valve (8 in.)

Victaulic V080705100 FireLock Style 705 Ductile Iron Grooved EPDM Seat Hand Wheel Butterfly Valve (8 in.)

Brand: VICTAULIC
SKU: V080705100
Availability: In Stock

Ships same day if ordered by 12 pm
$1,272.48
$1,272.48
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Victaulic V080705100 is a FireLock Style 705 8 in. grooved ductile iron butterfly valve with EPDM seat and hand wheel operator. It has a weatherproof actuator/hand-wheel housing suitable for indoor or outdoor use and is rated for pressures up to 300 psi (2068 kPa / 21 bar). The grooved end connection enables mechanical joining to grooved piping; the valve is used in fire protection and general piping systems and is available in sizes 2-12 in.

  • Ductile iron body and disc with EPDM seat for resilient sealing
  • Hand wheel operator with weatherproof actuator/hand-wheel housing for indoor or outdoor use
  • Grooved end connection; pressure rated up to 300 psi (2068 kPa / 21 bar)

Product Highlights

FireLock Style 705, 8 in. grooved butterfly valve; ductile iron body/disc; EPDM seating; hand wheel operator; 300 psi rating.

Product Information

Standard Information

  • Brand: VICTAULIC
  • Manufacturer Part Number: V080705100
  • Country of Origin: United States
Technical Specifications
Brand
Victaulic
MPN
V080705100
Model
FireLock Style 705
Series
Series 705
Size
8 in
Connection Type
Grooved
Body Material
Ductile iron (ASTM A536 Grade 65-45-12)
Disc Material
Ductile iron
Seat Material
EPDM (Grade E where specified)
Seal Material
EPDM stem seal
Stem Material
416 stainless steel (ASTM A582)
Operator
Hand wheel (ductile iron handwheel)
Actuator Housing
Weatherproof actuator/hand-wheel housing (suitable for indoor or outdoor use)
Pressure Rating
Up to 300 psi (2068 kPa / 21 bar)
Material Standards
Body: ASTM A536 Grade 65-45-12; Stem: ASTM A582
Coating/Finish
Black alkyd enamel coating
Certifications
C/US UL Listed; FM and LPCB approved; VDS compliant
Actual Outside Diameter
8-5/8 in
Width
5.33 in
Handle Diameter
8.1 in
Country of Origin
United States
