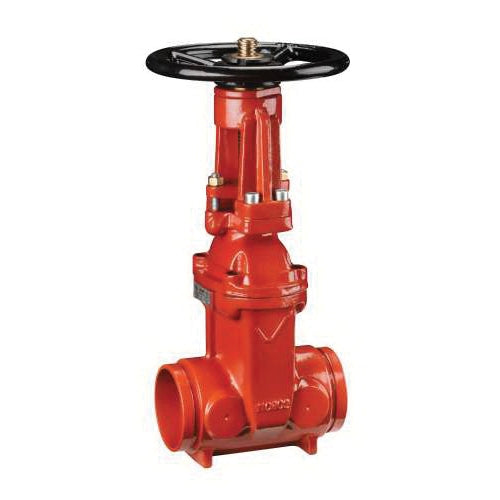

Victaulic V060771P01 FireLock 771 Fusion Bonded Epoxy Coating Ductile Iron Gate Valve 6 in

Product Description

The Victaulic V060771P01 is a FireLock 771 ductile iron gate valve designed for reliable operation in various fire protection systems. This valve features a six-inch grooved connection, making it suitable for IPS carbon steel pipe applications. It has an outside stem and yoke configuration, which provides a quick visual indicator of the valve's position, ensuring immediate confirmation of whether it is open or closed.

• Durable ductile iron construction
• Fusion bonded epoxy coating for enhanced corrosion resistance
• Designed for easy operation with a handwheel

Product Highlights

This valve is ideal for ensuring positive shut-off in fire lines and meets multiple industry standards.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI771H.6

Technical Specifications

• Connection Size: 6 in
• Connection Type: Grooved
• Dimension: 10.512 in L
• Finish: Fusion Bonded Epoxy Coated
• Item Name: Gate Valve
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM B62, ASTM B16
• Material: Ductile Iron
• Model: 771
• Operator Type: Handwheel
• Pressure Rating: 250 psi
• Stem Material: Brass
• Sub Brand: FireLock
• Standards/Certifications: cULus listed, FM approved
• Applications: For IPS carbon steel pipe
