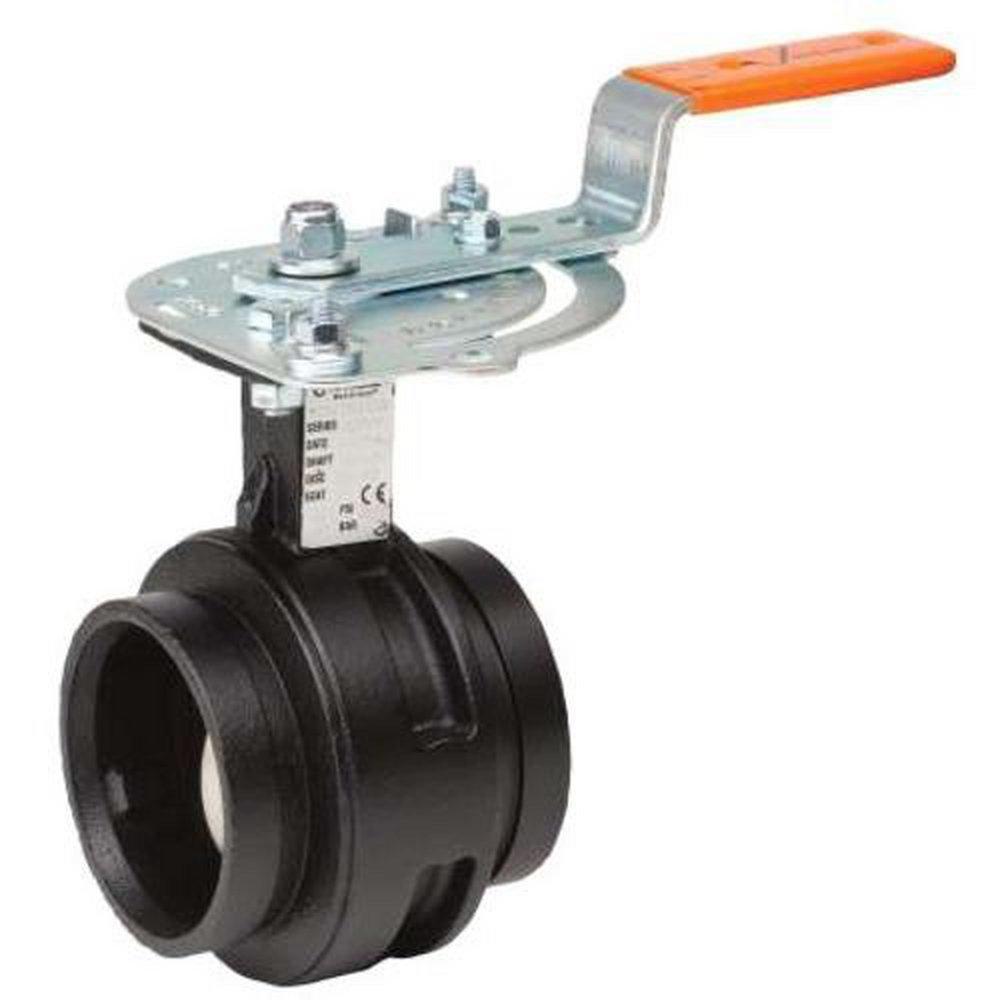

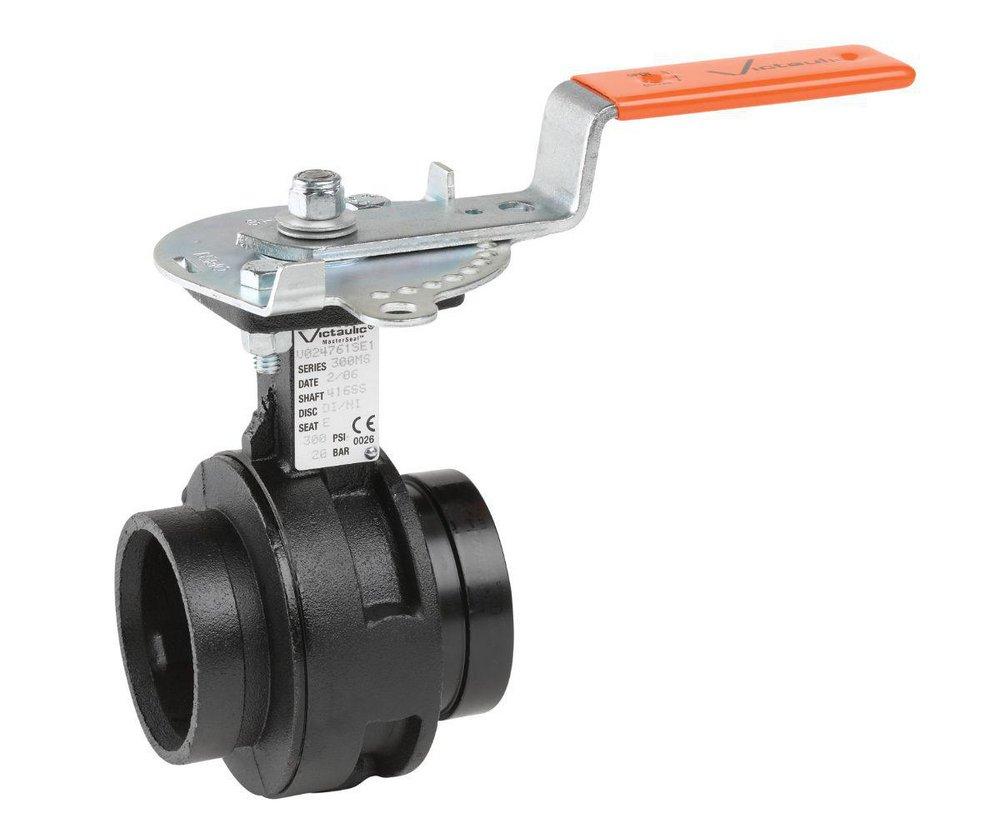

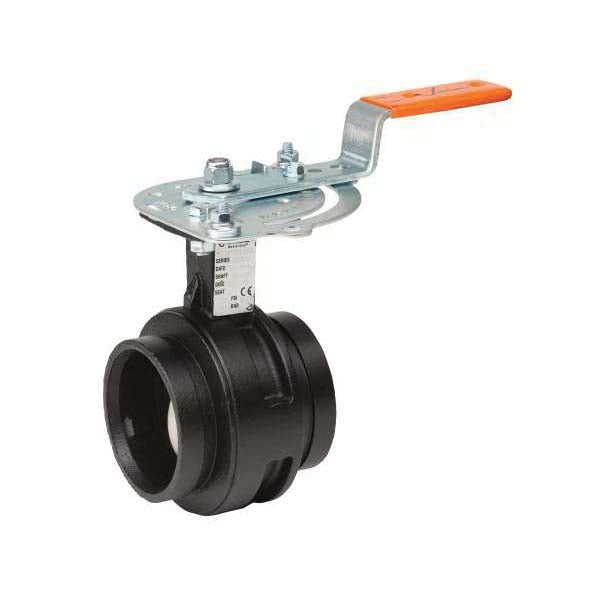

Victaulic V060761SE2 Vic-300 MasterSeal 6 in. Ductile Iron EPDM Locking Lever Handle Butterfly Valve

Product Description

The VICTAULIC V060761SE2 Vic-300 MasterSeal butterfly valve is designed for use in carbon steel, ductile iron, and plastic piping systems. It is designed for bi-directional, dead end services to full working pressure. This valve features infinitely variable service with memory stop and is padlockable. Accommodates pressures ranging from full vacuum (29.9 in Hg) up to 300 psi.

• For use in carbon steel piping systems
• For use in ductile iron piping systems
• Infinitely variable service with memory stop
• Designed for bi-directional service
• Designed for dead end services to full working pressure

Product Highlights

The VICTAULIC Vic-300 MasterSeal butterfly valve is suitable for carbon steel, ductile iron, and plastic piping systems. Designed for bi-directional and dead end services, it features a memory stop and is padlockable.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: V060761SE2
• Country of Origin: Domestic

Technical Specifications

• Connection Size: 6 in
• Connection Type: Grooved
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Co-Efficient: 1800 Cv
• Item Name: Butterfly Valve with 10-Position Handle and Memory Stop
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: 761
• Operator Type: Zinc-Plated Carbon Steel 10-Position Handle
• Pressure Rating: 300 psi
• Seal Material: EPDM
• Seat Material: EPDM
• Stem Material: 416 Stainless Steel
• Sub Brand: Vic-300, MasterSeal
• Temperature Rating: -30 to 230 deg F
• Brand: VICTAULIC
• MPN: V060761SE2
• Actuator Type: Lever-Lock Handle
• Inlet to Outlet Length: 5.88 in
• Media: Water
• Nominal Size: 6 In
• Series: 761
• Stem & Pin Material: 416 Stainless Steel (Stem)
• ANSI: ANSI 300, ANSI 61
• ASTM: ASTM A351 Grade CF8M, ASTM A536 Grade 65-45-12, ASTM A564, ASTM A582, ASTM B733
• Coating: Painted
• Collection: Vic-300™ MasterSeal™
• End Connection 1: Grooved
• End Connection 2: Grooved
• End Connections: Grooved
• ISO: ISO 5211
• MSS: MSS SP-67
• Maximum Temperature: 250
• Minimum Temperature: -30
• NSF: NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure - Maximum: 300 psi
• Pressure Class: 300#
• Recommended Valve Application: Water
• UL Listed: Yes
• Valve Body Style: Grooved
• Valve Disc Material: Ductile Iron
• Valve Operator: Lever Handle
• Valve Seat Material: EPDM
• Valve Size: 6 in
• Valve Stem: Blowout-proof
• Valve Type: Butterfly Valve
