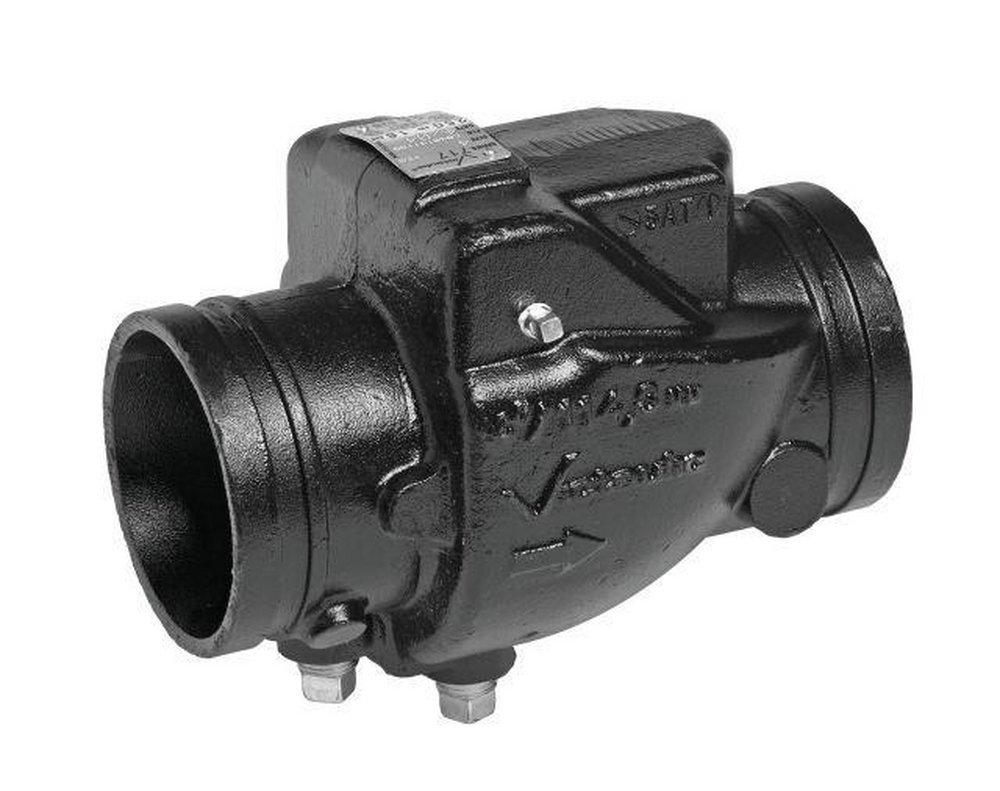

Victaulic V060717PE2 FireLock® Series 717 6 in. Ductile Iron Grooved Check Valve

Product Description

The Victaulic V060717PE2 is a FireLock® Series 717 check valve designed for fire protection systems. This valve features a ductile iron body for enhanced durability and a robust design suitable for various applications.

• Epoxy coated for corrosion resistance
• Clear full opening when the disc is fully open
• Adjustable weight to manage clapper operation

Product Highlights

This check valve ensures safe and efficient operation within fire suppression systems, preventing backflow and maintaining system integrity.

Product Information

Standard Information

• Brand: Victaulic
• Model: 717R

Technical Specifications

• Color: Black
• Connection Size: 6 inches
• Connection Type: NPT
• Dimension: 28.5 inches L x 11.5 inches H
• Disc Material: Elastomer Coated Ductile Iron
• Finish: Enamel
• Pressure Rating: 365 psi
• Material Specifications: ASTM A536, Grade 65-45-1
• Seat Material: Nickel-Plated
• Sub Brand: FireLock
