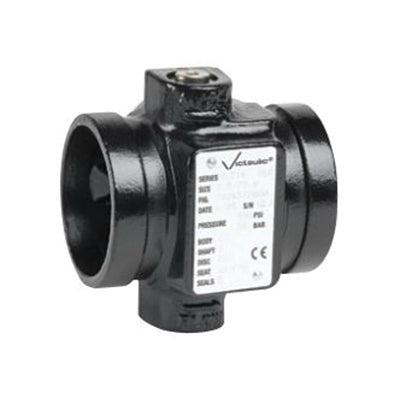

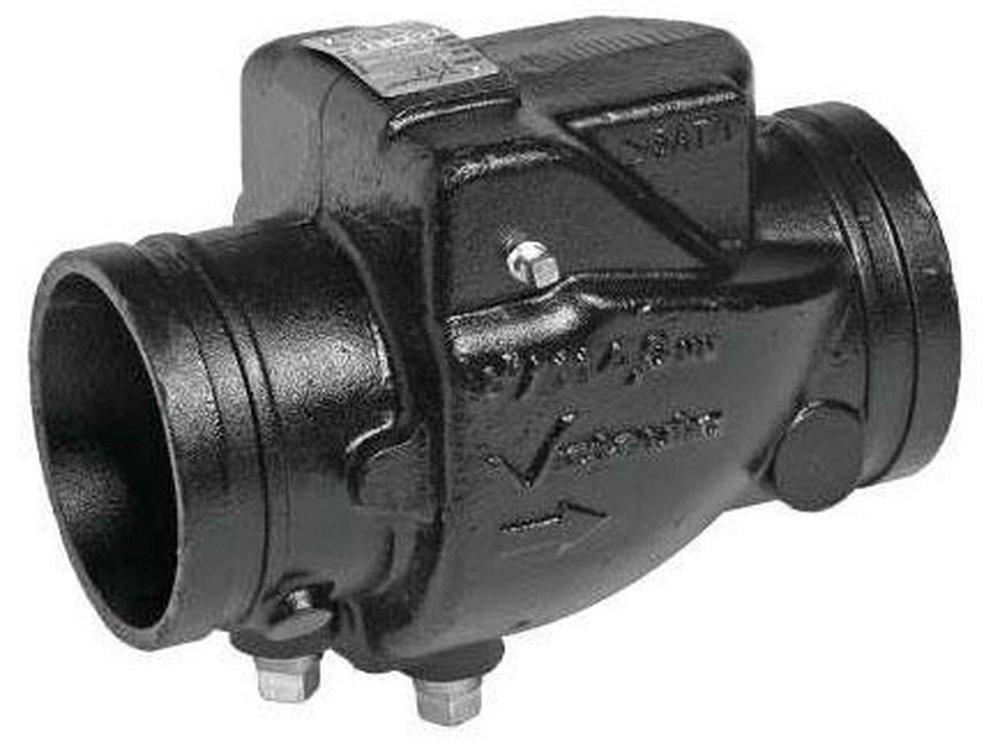

Victaulic V060717PE0 FireLock® Series 717 6 in. Grooved Check Valve

Product Description

The Victaulic V060717PE0 is a FireLock® Series 717 check valve designed for reliable performance in fire protection systems. This six-inch grooved check valve prevents backflow and features an elastomer encapsulated disc with an electroless nickel-plated seat.

• Features a spring-assisted mechanism for non-slamming operation.
• Installable vertically or horizontally with arrow indicator for proper orientation.
• Suitable for pressures up to 365 psi.

Product Highlights

Designed for fire protection systems, the Victaulic V060717PE0 is essential for ensuring the efficient operation of water flow while preventing unwanted backflow.

Product Information

Standard Information

• Brand: Victaulic
• Part No: V060717PE0

Technical Specifications

• Color: Black
• Connection Size: 6 inches
• Connection Type: Grooved
• Dimension: eleven and a half inches L x eight inches W x nine and a half inches H
• Disc Material: Elastomer
• Finish: Painted
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM B733
• Material: Ductile Iron
• Model: 717
• Pressure Rating: 365 psi
• Seat Material: Electroless Nickel Plating Ductile Iron
• Sub Brand: FireLock
