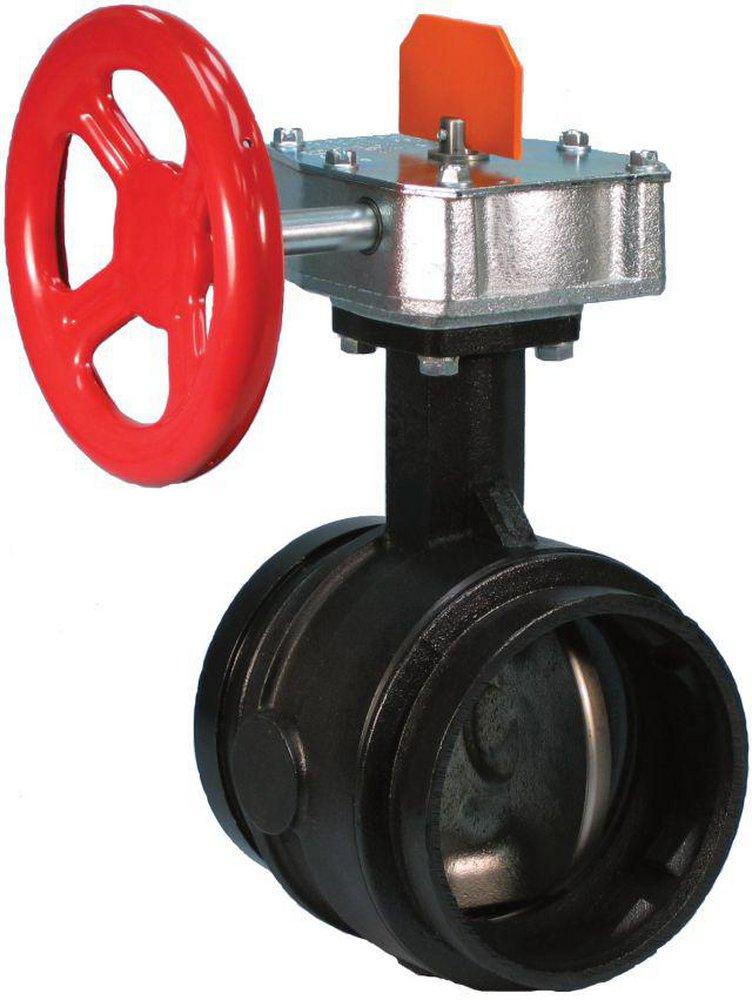

Victaulic V060707900 FireLock Style 707C 6 in Ductile Iron Grooved EPDM Seat Hand Wheel Butterfly Valve

Product Description

The Victaulic V060707900 is a fire protection butterfly valve designed for safety in high-pressure environments. This valve features a ductile iron body and disc with an EPDM seat. It is suitable for applications such as fire pump testing and pressure reducing valve systems.

• Constructed from ductile iron for durability
• Rated for pressures up to 300 psi
• Designed to be supervised closed during normal operation

Product Highlights

This valve is designed for fire protection services. It incorporates a weatherproof actuator housing, allowing for outdoor applications. Compliance with NFPA standards ensures reliable performance in critical situations.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 707C
• Connection Size: 6 in
• Connection Type: Grooved
• Material: Ductile Iron
• Pressure Rating: 300 psi
• Disc Material: Ductile Iron
• Seat Material: Grade E EPDM
• Stem Material: 416 Stainless Steel
• Flow Coefficient: 1800 Cv
• Dimension: 5.88 in L x 15.22 in H
• Finish: Black Alkyd Enamel Coated
• Standards/Certifications: cULus listed, FM, VdS approved
