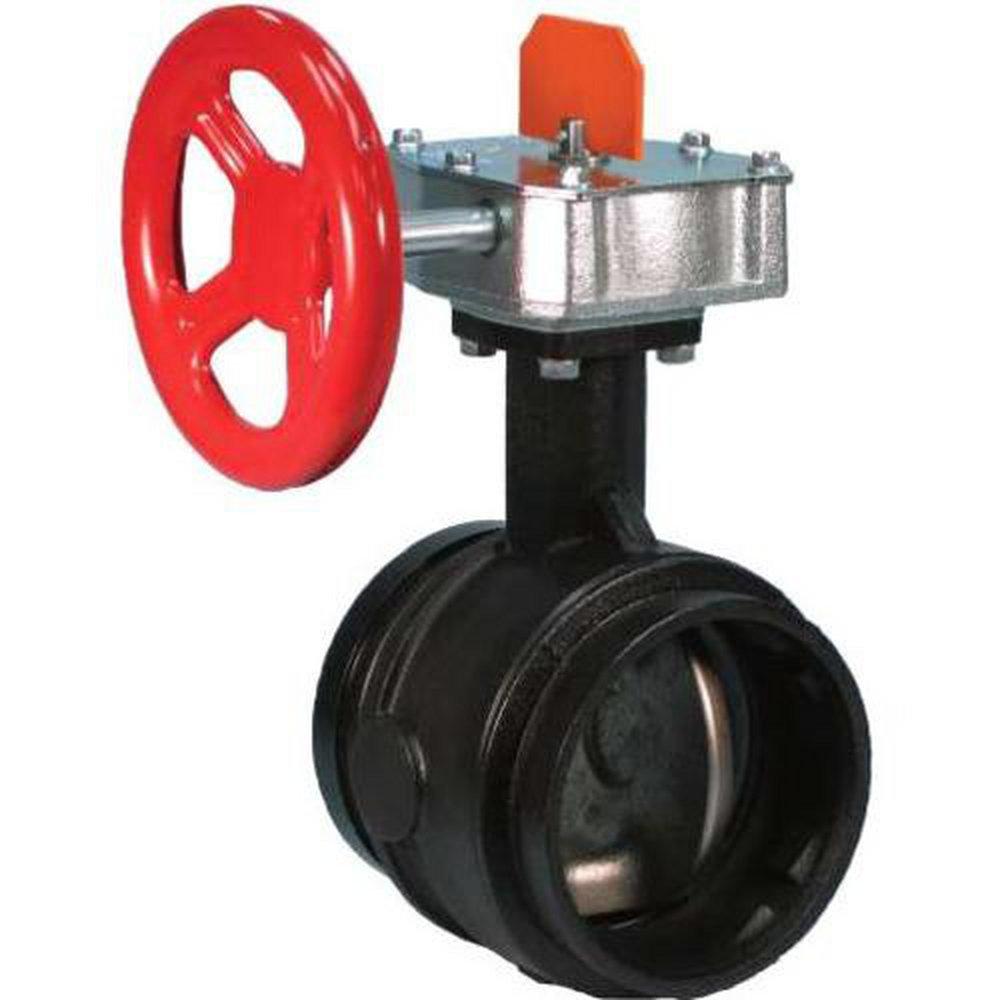

Victaulic V060705100 FireLock Style 705 6 in. Ductile Iron Grooved EPDM Seat Hand Wheel Butterfly Valve

Product Description

The Victaulic V060705100 is a butterfly valve designed for fire protection. This product features a ductile iron body and disc with EPDM seats. The valve operates efficiently in sizes ranging from two to twelve inches.

• Weatherproof actuator housing for indoor and outdoor use.
• Pressures up to 300 psi.
• Designed specifically for fire protection applications.

Product Highlights

This valve is equipped to handle various fire protection requirements and complies with multiple industry standards.

Product Information

Standard Information

• Brand: Victaulic
• Part No: V060705100

Technical Specifications

• Connection Size: 6 in
• Connection Type: Grooved
• Dimension: 5.88 in L x 15.22 in H
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Coefficient: 1800 Cv
• Item Name: Butterfly Valve with Weatherproof Actuator and Supervised Open Switch
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM A582, C36000
• Pressure Rating: 300 psi
• Seat Material: Grade E EPDM
• Stem Material: 416 Stainless Steel
• Sub Brand: FireLock
