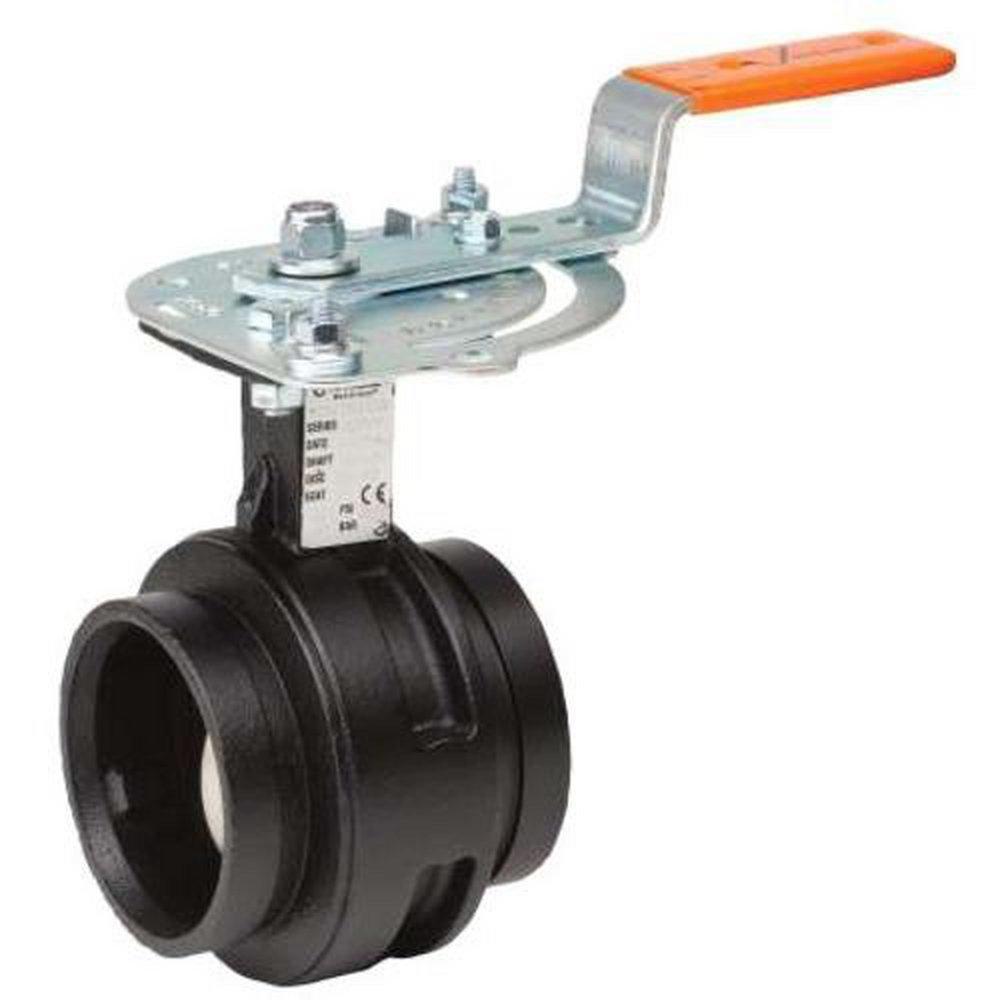

Victaulic V050761SE2 Vic-300 MasterSeal 5 in. Ductile Iron Grooved EPDM 10 Position Handle with Memory Stop Butterfly Valve

Product Description

The Victaulic V050761SE2 is a butterfly valve designed for durability and reliability. This five-inch ductile iron valve features a grooved connection and an EPDM seal. It includes a ten-position handle with a memory stop for precise control and operation.

• Pressure rated up to three hundred psi.
• Suitable for bi-directional flow and dead-end service.
• Temperature range from negative thirty to two hundred thirty degrees Fahrenheit.

Product Highlights

This valve is ideal for use in various piping systems including carbon steel, ductile iron, and plastic. It is designed for applications that require dependable shut-off and control.

Product Information

Standard Information

• Brand: Victaulic
• MPN: V050761SE2

Technical Specifications

• Connection Size: 5 inches
• Connection Type: Grooved
• Dimension: 5.88 inches long x 6.3 inches diameter
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Co-Efficient: 1200 Cv
• Item Name: Butterfly Valve with 10-Position Handle and Memory Stop
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: 761
• Operator Type: Zinc-Plated Carbon Steel 10-Position Handle
• Pressure Rating: 300 psi
• Seal Material: EPDM
• Seat Material: EPDM
• Stem Material: 416 Stainless Steel
• Sub Brand: Vic-300, MasterSeal
• Temperature Rating: -30 to 230 degrees Fahrenheit
