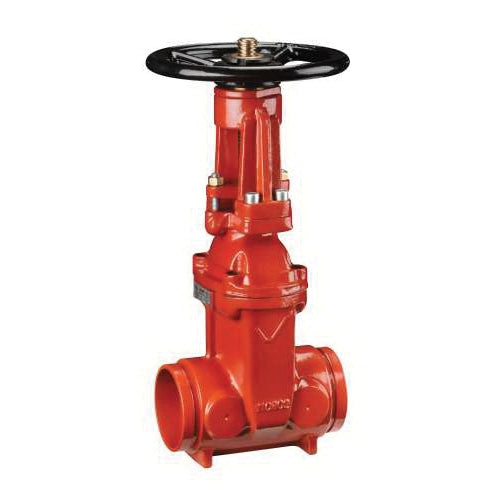

Victaulic V040771P01 FireLock 771 Fusion Bonded Epoxy Coating Ductile Iron Gate Valve 4 in

Product Description

The Victaulic V040771P01 is a ductile iron gate valve designed for fire protection applications. This valve features a fusion bonded epoxy coating and is specifically made for installing on IPS carbon steel pipes. Its design includes an outside stem and yoke that provides a clear visual indication of the valve's open or closed position, ensuring reliable operation in critical situations.

• EPDM body gasket and O-ring seals for enhanced durability
• Quick visual indicator for open/closed status
• Standards and certifications include cULus listing and FM approval

Product Highlights

This gate valve is ideal for use in fire protection systems, offering a dependable solution for ensuring positive shut-off.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI771H.4

Technical Specifications

• Connection Size: 4 in
• Connection Type: Grooved
• Dimension: 9.016 in L
• Finish: Fusion Bonded Epoxy Coated
• Item Name: Gate Valve
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM B62, ASTM B16
• Material: Ductile Iron
• Model: 771
• Operator Type: Handwheel
• Pressure Rating: 250 psi
• Stem Material: Brass
• Sub Brand: FireLock
