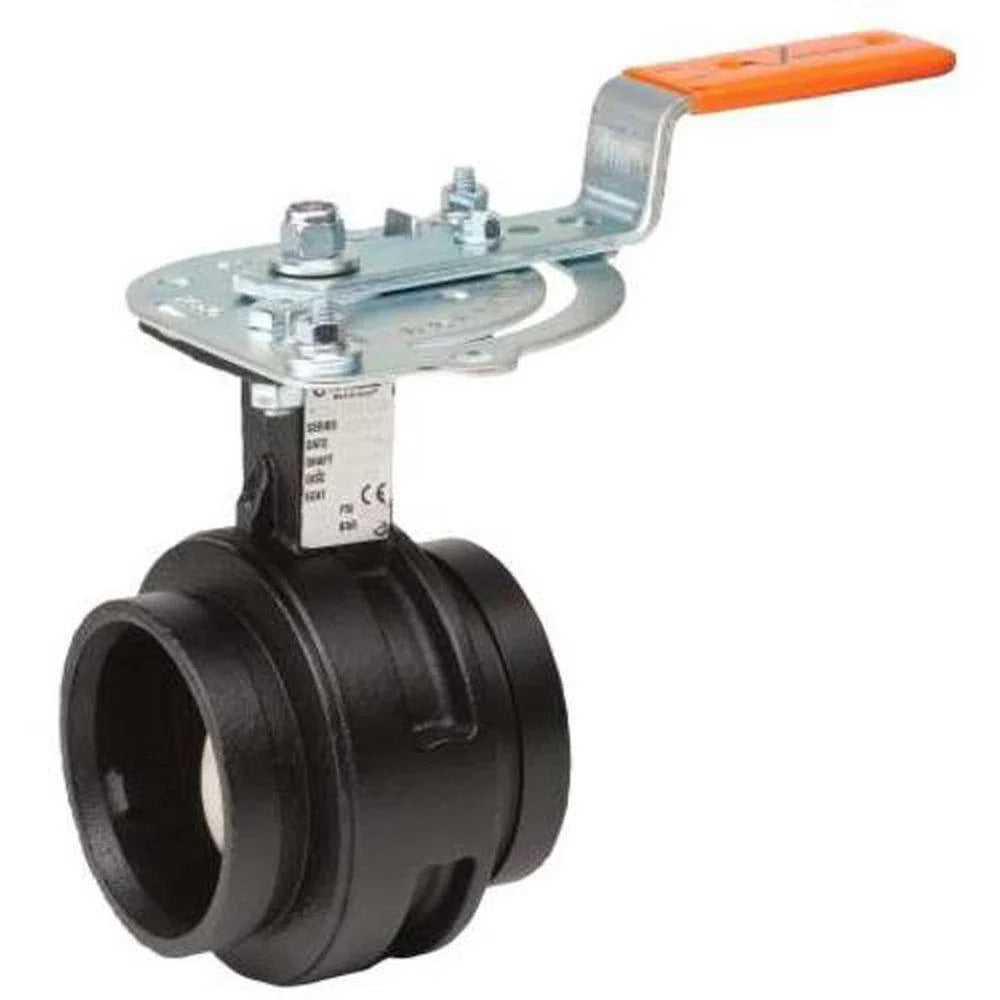

Victaulic V040761SE2 Vic-300 MasterSeal 4 Inch Ductile Iron Butterfly Valve Grooved EPDM Seal

Product Description

The Victaulic V040761SE2 Vic-300 MasterSeal Butterfly Valve is a robust solution for various piping systems. This valve, featuring ductile iron construction and a grooved connection, is engineered for bidirectional and dead-end services to full working pressure.

• Patented seat design for full 360-degree sealing
• Operating pressures from full vacuum to 300 psi
• 10-position handle with memory stop

Product Highlights

Designed for use in carbon steel, ductile iron, and plastic piping systems, the Vic-300 MasterSeal is known for its reliability and performance, meeting MSS-SP-67 requirements.

Product Information

Standard Information

• Brand: Victaulic
• MPN: V040761SE2
• Sub Brand: Vic-300, MasterSeal

Technical Specifications

• Connection Size: 4 inches
• Connection Type: Grooved
• Dimension: 4.63 inches L x 5-1/2 inches Dia
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Co-Efficient: 820 Cv
• Item Name: Butterfly Valve with 10-Position Handle and Memory Stop
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: 761
• Operator Type: Zinc-Plated Carbon Steel 10-Position Handle
• Pressure Rating: 300 psi
• Seal Material: EPDM
• Seat Material: EPDM
• Stem Material: 416 Stainless Steel
• Temperature Rating: -30 to 230 deg F
