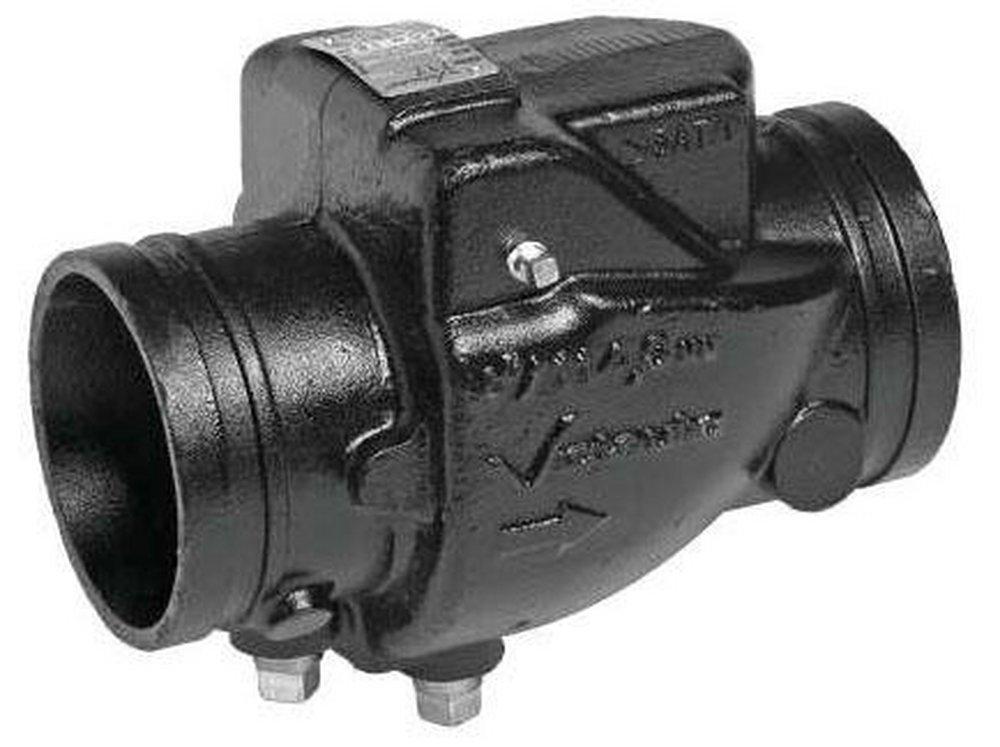

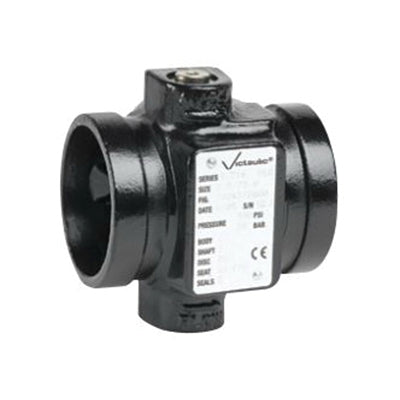

Victaulic V040717PE0 FireLock® Series 717 4 in Grooved Check Valve

Product Description

The Victaulic V040717PE0 is a FireLock® Series 717 4 inch grooved check valve, designed for fire protection systems. This valve prevents backflow, ensuring a reliable and effective operation. It features an elastomer encapsulated disc with an electroless nickel-plated seat to enhance durability.

• Operating parts accessible through a top opening
• Adjustable weight controls the opening and closing of the clapper
• Can be installed in horizontal or vertical positions

Product Highlights

This check valve is crafted for high performance and compliance with safety standards.

Product Information

Standard Information

• Brand: Victaulic
• MPN: V040717PE0

Technical Specifications

• Color: Black
• Connection Size: 4 in
• Connection Type: Grooved
• Dimension: 9.63 in L x 6 in W x 7.38 in H
• Disc Material: Elastomer
• Finish: Painted
• Item Name: Check Valve
• Pressure Rating: 365 psi
• Seat Material: Electroless Nickel Plating Ductile Iron
• Sub Brand: FireLock
• Standards/Certifications: cULus listed, FM, LPCB, VdS, CTP approved
• Applications: For fire protection systems
