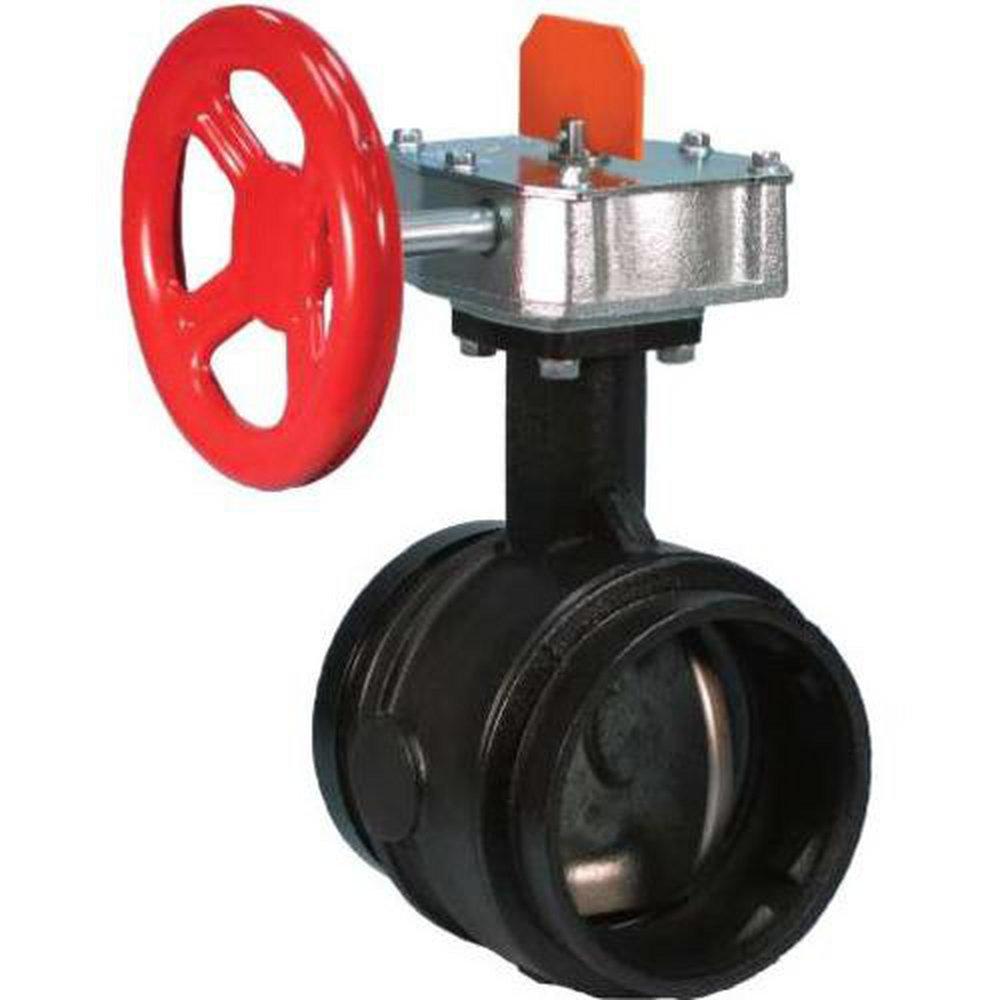

Victaulic V040707900 FireLock™ Style 707C 4 in. Ductile Iron Grooved EPDM Seat Wheel Handle Butterfly Valve

Product Description

The Victaulic V040707900 is a FireLock™ Style 707C butterfly valve designed from durable ductile iron. This valve features a four-inch connection size and a grooved connection type. It is essential for fire protection and can be used with various systems requiring a supervisory closed position.

• Constructed with weatherproof actuator housing.
• Designed to be supervised closed during normal operating conditions.
• Suitable for fire pump testing and pressure reducing valve bypass lines.

Product Highlights

This valve is specifically intended for use in fire protection systems and meets various industry standards.

Product Information

Standard Information

• Brand: Victaulic
• Product Name: FireLock™ Style 707C Butterfly Valve

Technical Specifications

• Connection Size: 4 inches
• Connection Type: Grooved
• Dimension: 4.63 inches L x 11.69 inches H
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Coefficient: 820 Cv
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM B733, ASTM A582, C36000
• Operator Type: Ductile Iron Handwheel
• Pressure Rating: 300 psi
• Seat Material: Grade E EPDM
• Stem Material: 416 Stainless Steel
• Sub Brand: FireLock
