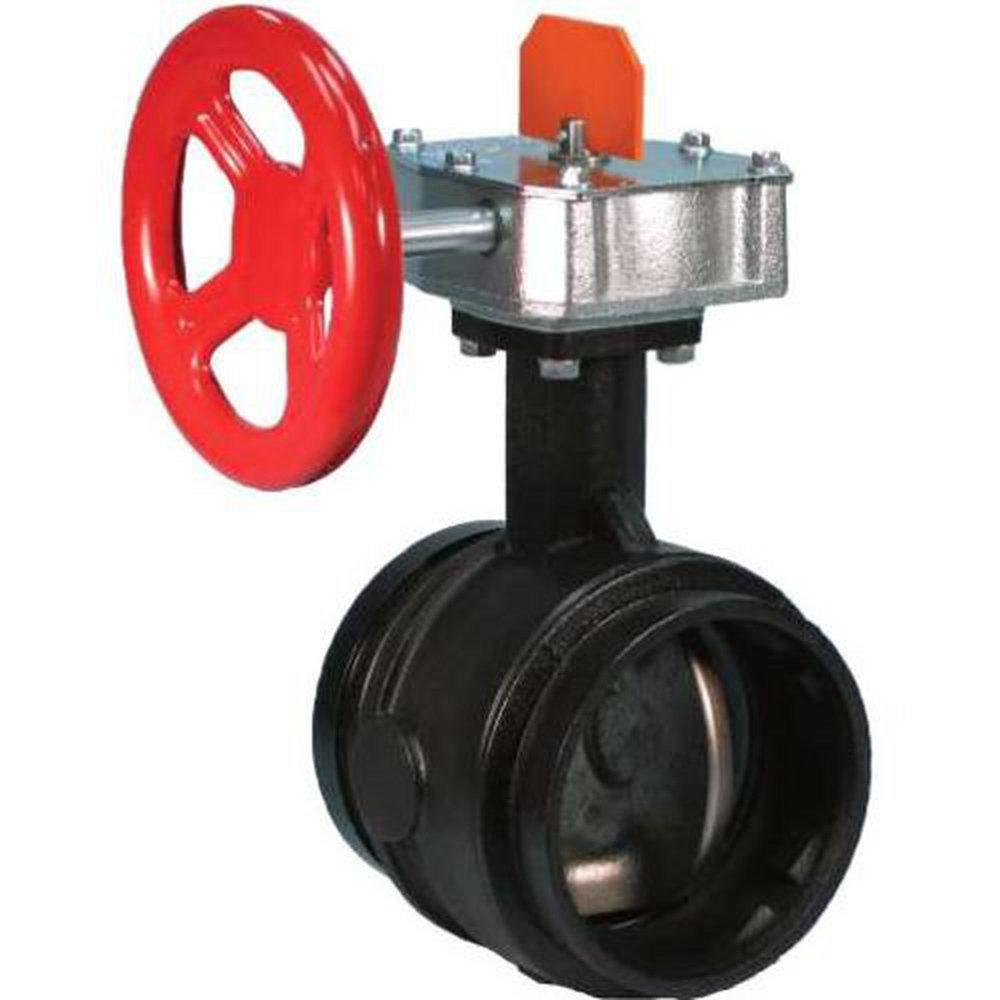

Victaulic V040705100 FireLock Style 705 4 in Ductile Iron Grooved EPDM Seat Hand Wheel Butterfly Valve

Product Description

The Victaulic V040705100 FireLock Style 705 is a four-inch ductile iron grooved butterfly valve designed for fire protection applications. This valve features a durable ductile iron body and disc, coupled with EPDM seats, making it suitable for both indoor and outdoor use. The actuator housing is weatherproof, adding to its versatility.

• Connection Size: 4 inches
• Pressure Rating: Up to 300 psi
• Flow Coefficient: 820 Cv

Product Highlights

This butterfly valve is designed for optimal performance in fire protection systems with a focus on reliability and ease of use.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 705
• Connection Type: Grooved
• Material: Ductile Iron
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Seat Material: Grade E EPDM
• Stem Material: 416 Stainless Steel
• Dimensions: 4.63 in L x 11.69 in H
