Victaulic V040461XE2 461 4 Vlv W/Hdl Asy

Product Description

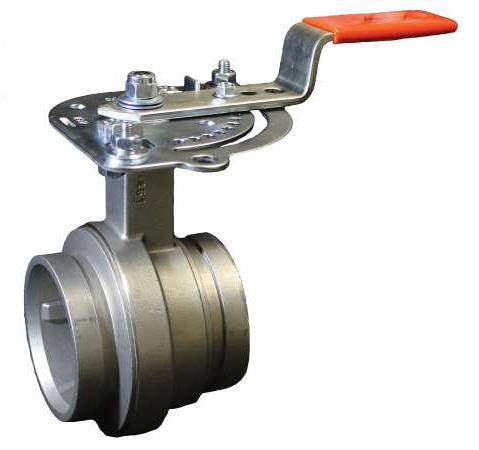

The VICTAULIC V040461XE2 461 butterfly valve is designed for bi-directional, dead-end services at full working pressure. It features a 10-position handle actuator and accommodates 2 inches of insulation. The valve is suitable for water media and has grooved end style.

• Designed for bi-directional, dead end services to full working pressure
• Accommodates 2 in of insulation
• 10-position handle operator with memory stop operator

Product Highlights

The VICTAULIC V040461XE2 butterfly valve is ideal for various applications, offering durability and precise control.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: V040461XE2

Technical Specifications

• Actuator Type: 10 Position Handle
• Body Material: Stainless Steel
• Disc Material: Stainless Steel
• End Style: Grooved
• Inlet to Outlet Length: 4.63 in
• Media: Water
• Nominal Size: 4 In
• Series: 461
• Stem & Pin Material: 17-4PH Stainless Steel (Stem)
• Temperature Rating: -30 to 230 deg F
• Top to Inlet Center: 6-3/4 in
• Connection Size: 4" x 4"
• Connection Type: Grv x Grv
