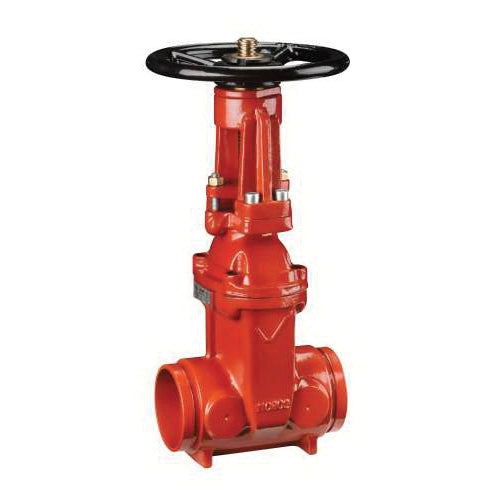

Victaulic V030771P01 FireLock 771 Fusion Bonded Epoxy Coating Ductile Iron Gate Valve 3 in Grooved

Product Description

The Victaulic V030771P01 is a FireLock 771 ductile iron gate valve. It has a three-inch grooved connection size. This valve features a fusion bonded epoxy coating which enhances its durability and resistance to corrosion.

• Designed for use in fire lines.
• Provides a positive shut-off and a quick visual indicator for open or closed positions.
• Constructed using EPDM body gaskets and O-ring seals for reliable performance.

Product Highlights

This gate valve is essential in fire protection applications, ensuring safe, efficient operation.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 3 in
• Connection Type: Grooved
• Dimension: 7.992 in L
• Finish: Fusion Bonded Epoxy Coated
• Item Name: Gate Valve
• Material: Ductile Iron
• Model: 771
• Operator Type: Handwheel
• Pressure Rating: 250 psi
• Stem Material: Brass
• Sub Brand: FireLock
