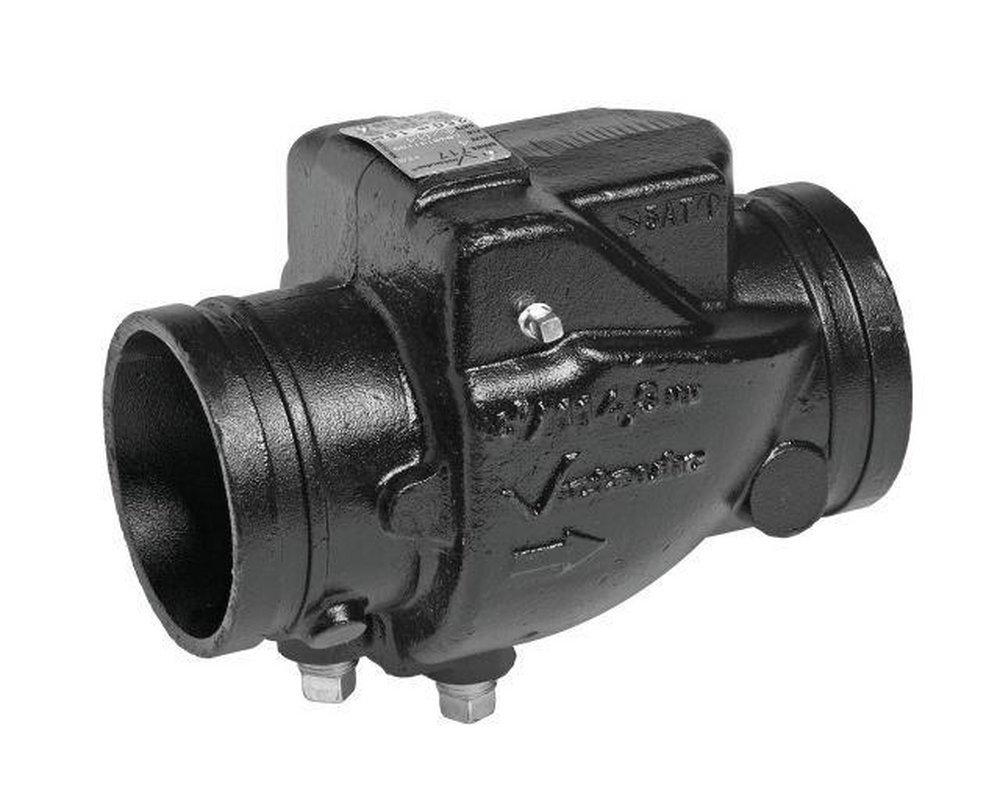

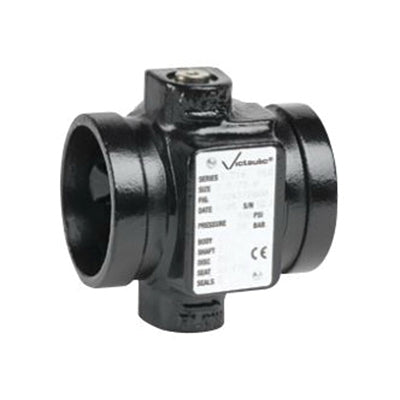

Victaulic V030717PE0 FireLock® Series 717 3 in Ductile Iron Grooved Check Valve

Product Description

The Victaulic FireLock® Series 717 check valve, model V030717PE0, is designed for reliable fire protection applications. This valve is made from durable ductile iron, featuring a grooved connection for easy installation. It has a spring-assisted disc mechanism that provides a leak-free seal with minimal head pressure requirement.

• Elastomer encapsulated disc with electroless nickel-plated seat.
• Installable in horizontal or vertical positions.
• Pressure rating up to 365 psi.

Product Highlights

Ideal for fire protection systems, the V030717PE0 offers robust construction and operational reliability.

Product Information

Standard Information

• Brand: Victaulic
• Model: 717

Technical Specifications

• Connection Size: 3 in
• Connection Type: Grooved
• Dimension: 4-1/4 in L x 5.06 in W x 4.17 in H
• Disc Material: Aluminum Bronze
• Finish: PPS Coated
• Pressure Rating: 365 psi
• Material: Ductile Iron
• Standards/Certifications: cULus listed, FM, LPCB, VdS, CTP approved
• Applications: For fire protection systems
