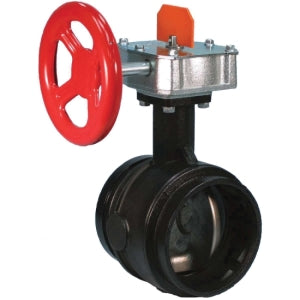

Victaulic v030707900 Butterfly Valve 3 Inch Grooved

Product Description

The VICTAULIC v030707900 is a FireLock Series 707C supervised closed butterfly valve with a weatherproof actuator, designed for fire protection piping systems. The valve features a ductile iron body with an ASTM A536 Grade 65-45-12 material standard, a 416 stainless steel stem, and a Grade E EPDM seat. With a 300 psi pressure rating and a flow coefficient (Cv) of 440 at full open, this valve delivers reliable shutoff performance in grooved-end fire suppression installations. The black alkyd enamel coating provides corrosion resistance suited for commercial and industrial environments. Licensed fire sprinkler contractors and mechanical pipe fitters are the typical installing trades.

The v030707900 is intended for use in supervised closed fire protection piping systems where the valve must be monitored in the closed position, signaling tamper conditions to a fire alarm control panel. The grooved-end connection makes it compatible with standard roll-groove and cut-groove coupling systems at 3-inch nominal pipe size. The weatherproof actuator extends its suitability to outdoor or semi-exposed installation locations. This valve is appropriate for wet-pipe, dry-pipe, and pre-action sprinkler system applications in residential, commercial, and industrial fire protection layouts.

Key Features

• Supervised closed design monitors valve position and reports tamper signals to fire alarm systems
• Weatherproof actuator rated for outdoor and semi-exposed installations
• 300 psi pressure rating suitable for demanding fire protection applications
• Grooved-end connection for fast, tool-efficient installation with standard groove couplings
• 416 stainless steel stem per ASTM A582 for corrosion resistance and strength
• C/US UL Listed, FM Approved, LPCB Approved, and VDS Compliant for code-required fire protection use

Compatibility

Designed for 3-inch grooved-end fire protection piping systems using standard roll-groove or cut-groove pipe and couplings. Compatible with wet-pipe, dry-pipe, and pre-action sprinkler systems requiring a supervised closed isolation valve. Consult Victaulic installation and engineering documentation to confirm system-specific fitment.

Installation Notes

Installation should be performed by a licensed fire sprinkler contractor in accordance with NFPA 13 and applicable local codes. De-pressurize and drain the affected piping section before installing or replacing this valve. Verify that the actuator wiring is connected to the building fire alarm control panel per the panel manufacturer wiring specifications and local AHJ requirements. Do not exceed the rated 300 psi working pressure.

Technical Specifications

• Series/Model: Series 707C
• Nominal Size: 3 inches
• Pressure Rating: 300 psi
• Flow Coefficient (Cv): 440 full open
• Connection Type: Grooved End
• Body Material: Ductile Iron, ASTM A536 Grade 65-45-12
• Stem Material: 416 Stainless Steel, ASTM A582
• Seat Material: Grade E EPDM
• Seal Material: EPDM Stem Seal
• Handle Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Width: 3.77 inches
• Actual Outside Diameter: 3.5 inches
• Handle Diameter: 4.5 inches
• Lead Free: No
• Certifications: C/US UL Listed, FM Approved, LPCB Approved, VDS Compliant

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: v030707900
