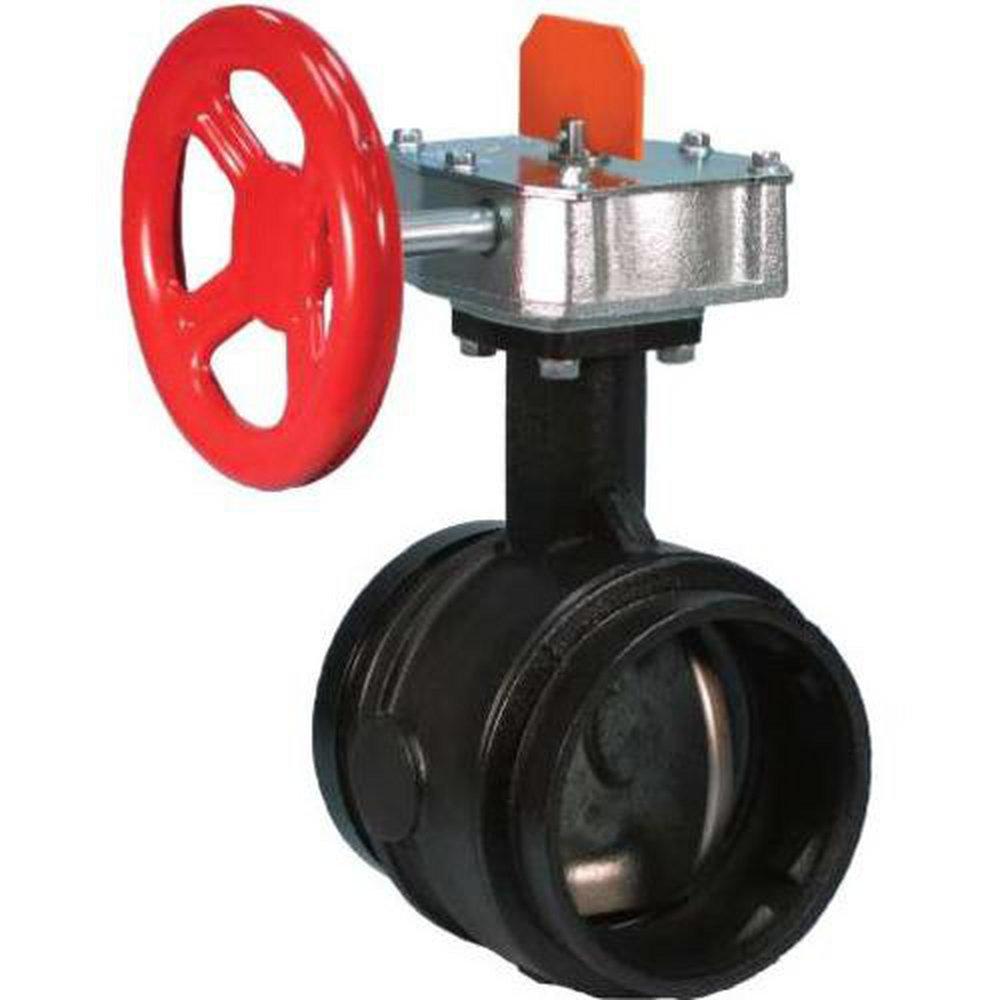

Victaulic V030705100 FireLock Style 705 3 In. Ductile Iron Grooved EPDM Seat Hand Wheel Butterfly Valve

Product Description

The Victaulic V030705100 is a butterfly valve designed for fire protection systems. It features a ductile iron body and disc with an EPDM seat, ensuring reliability and durability in demanding environments. This valve is suitable for indoor and outdoor applications and can handle pressures up to 300 psi.

• Ductile iron construction enhances strength and longevity
• Weatherproof actuator housing for versatile use
• Certified for fire protection applications

Product Highlights

The Victaulic V030705100 is essential for controlling flow in fire protection systems. Its robust design and certified materials make it reliable in high-pressure scenarios.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 3 in
• Connection Type: Grooved
• Dimension: 3.77 in L x 10.32 in H
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Co-Efficient: 440 Cv
• Item Name: Butterfly Valve with Weatherproof Actuator and Supervised Open Switch
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM A582, C36000
• Model: 705
• Operator Type: Ductile Iron Handwheel
• Pressure Rating: 300 psi
• Seat Material: Grade E EPDM
• Stem Material: 416 Stainless Steel
• Sub Brand: FireLock
