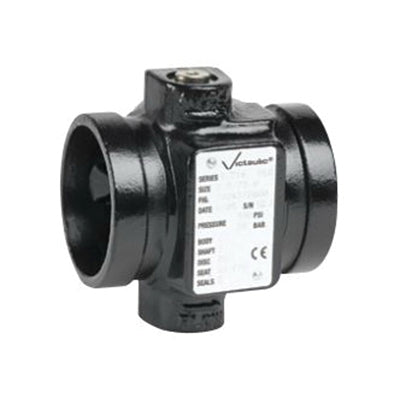

Victaulic V024717PE0 FireLock Series 717 2-1/2 in. Ductile Iron Grooved Sprinkler Check Valve

Product Description

The Victaulic V024717PE0 is a ductile iron grooved sprinkler check valve designed for fire protection systems. This valve ensures the prevention of backflow in piping systems. It features a robust design suitable for various installation conditions.

• Meets industry standards and certifications including cULus listed, FM, LPCB, VdS, and CTP approved.
• Constructed with a spring-assisted mechanism to prevent slamming during operation.
• Can be installed in both vertical and horizontal orientations.

Product Highlights

This check valve is specifically engineered for fire safety applications, providing reliable operation and durability.

Product Information

Standard Information

• Brand: Victaulic
• MPN: V024717PE0

Technical Specifications

• Connection Size: 2-1/2 in
• Connection Type: Grooved
• Dimension: 3.88 in L x 4.26 in W x 3.57 in H
• Disc Material: Aluminum Bronze
• Finish: PPS Coated
• Item Name: Check Valve
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM B733
• Material: Ductile Iron
• Model: 717
• Pressure Rating: 365 psi
• Seat Material: PPS Coated Ductile Iron
• Sub Brand: FireLock
