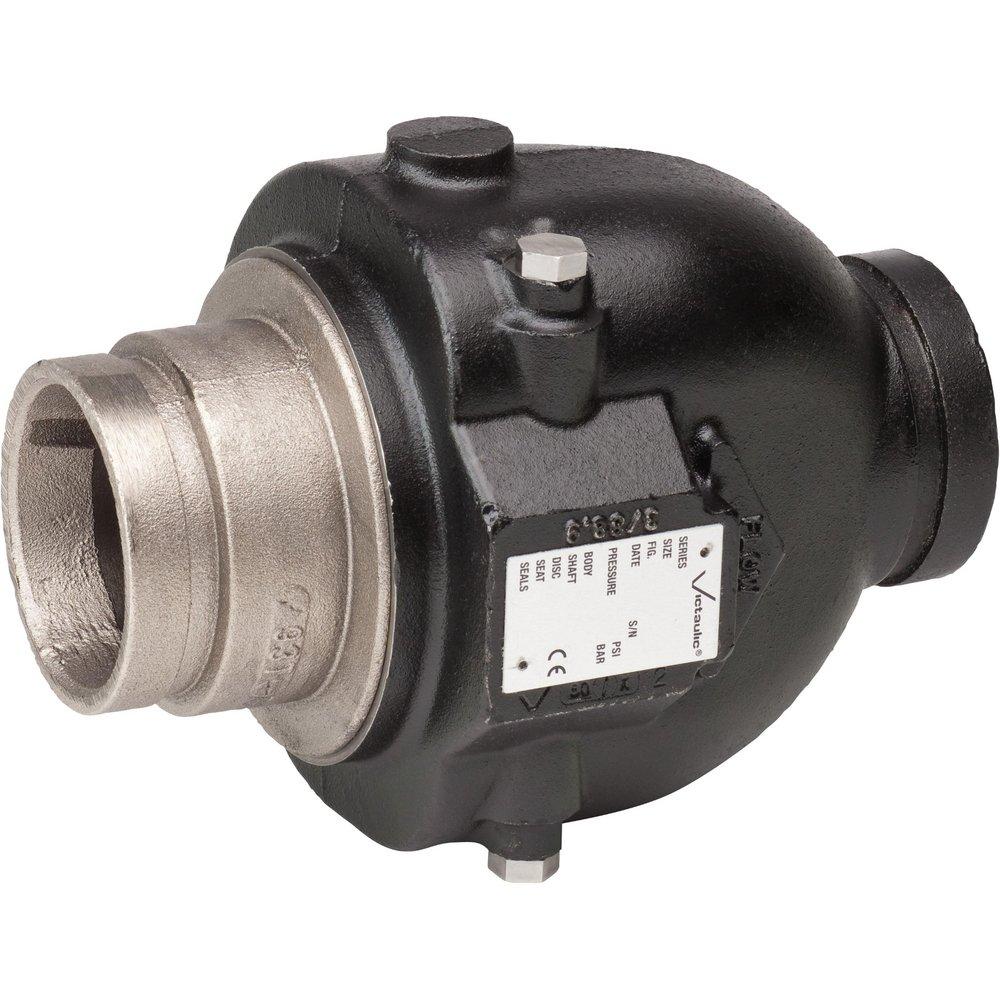

Victaulic V024716PE3 Series 716H 2-1/2 in. Ductile Iron Grooved Check Valve

Product Description

The Victaulic V024716PE3 is a check valve designed for high pressure applications. It features a durable ductile iron construction and a connection size of two and a half inches. This valve prevents backflow, ensuring efficient system performance.

• High pressure rating of 365 psi
• Elastomer encapsulated disc for better sealing
• Compatible with vertical and horizontal installations

Product Highlights

This check valve is suitable for various industrial applications and complies with ISO 9001 standards. It is built to last, with specific design features that enhance its reliability and functionality.

Product Information

Standard Information

• Brand: Victaulic
• Model: 716H

Technical Specifications

• Color: Black
• Connection Size: 2-1/2 in
• Connection Type: NPT
• Dimension: 9.38 in L
• Disc Material: Cast Stainless Steel
• Finish: Painted
• Flow Co-Efficient: 215 Cv
• Material: Ductile Iron
• Pressure Rating: 365 psi
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM B733
• Type: High Pressure
• Standards/Certifications: ISO 9001 standard
