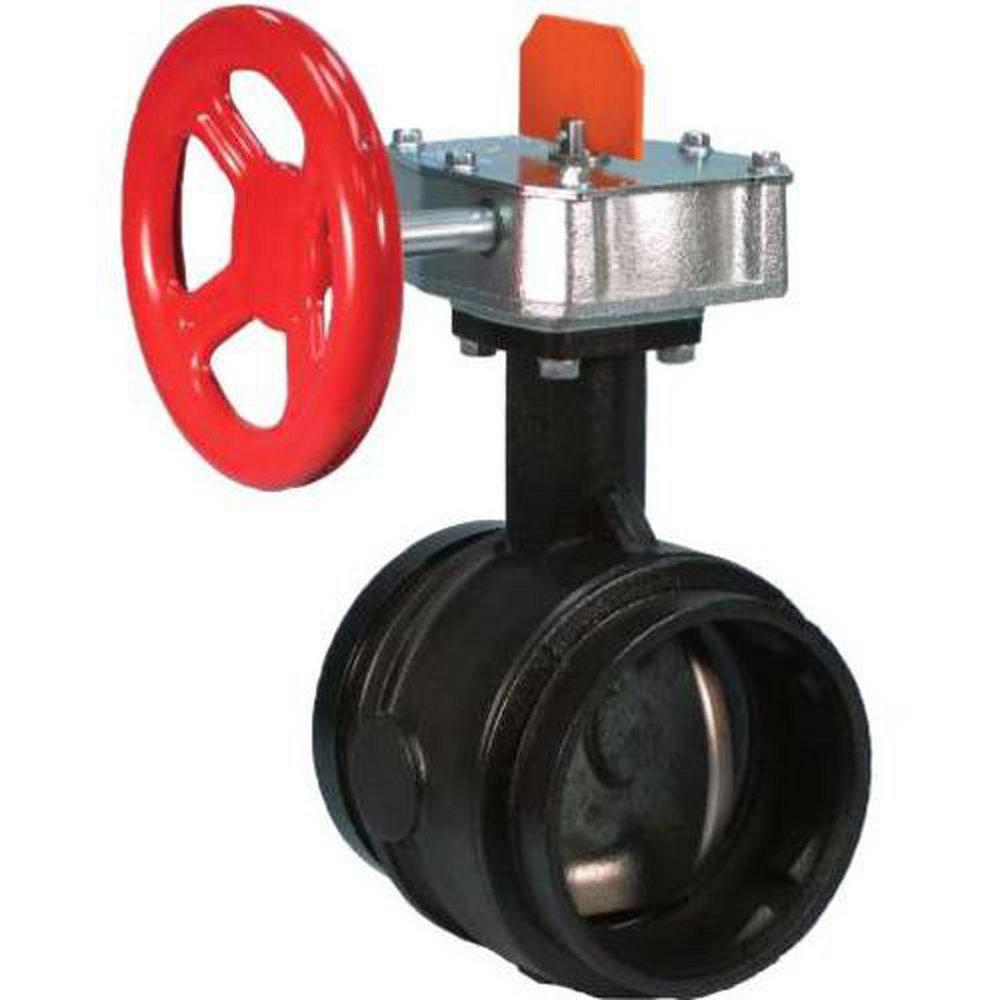

Victaulic V024705100 FireLock Style 705 2-1/2 in Ductile Iron Grooved EPDM Seat Hand Wheel Butterfly Valve

Product Description

The Victaulic FireLock Style 705 features the MPN V024705100. This butterfly valve is designed for fire protection applications. The valve has a ductile iron body with an EPDM seat that ensures longevity and reliability.

• Ductile iron construction for durability.
• Weatherproof actuator suitable for indoor and outdoor use.
• Pressure ratings up to 300 psi.

Product Highlights

This product is ideal for fire protection systems due to its robust design and materials.

Product Information

Standard Information

• Brand: Victaulic
• Model: 705

Technical Specifications

• Connection Size: 2-1/2 in
• Connection Type: Grooved
• Dimension: 3.77 in L x 9.82 in H
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Co-Efficient: 260 Cv
• Item Name: Butterfly Valve with Weatherproof Actuator and Supervised Open Switch
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM A582, C36000
• Seat Material: Grade E EPDM
• Stem Material: 416 Stainless Steel
• Pressure Rating: 300 psi
