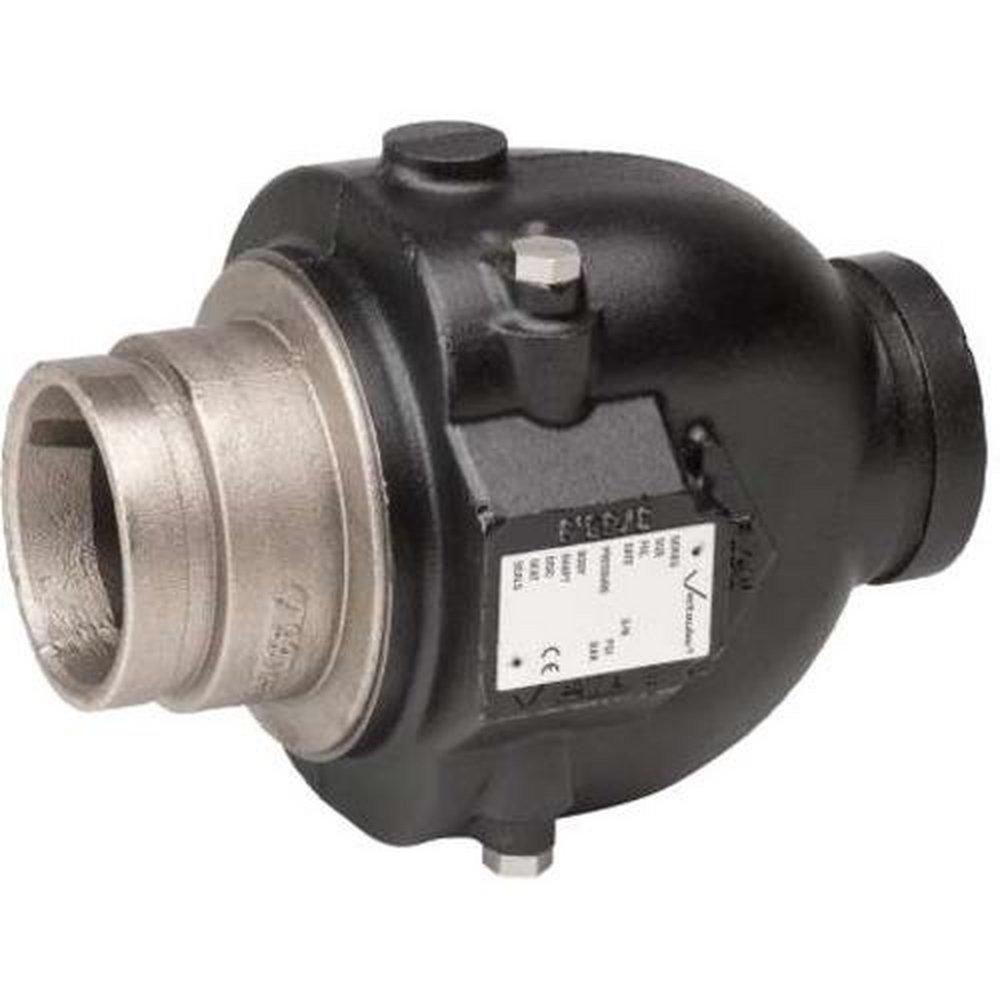

Victaulic V020717PH0 FireLock Series 717H 2 in Ductile Iron Grooved Spring Check Valve

Product Description

The Victaulic V020717PH0 is a FireLock Series 717H two-inch ductile iron grooved spring check valve. This valve is designed to prevent backflow in fire protection systems. Its single-disc mechanism includes a spring-assisted feature which ensures non-slamming operation, making it ideal for high-pressure settings. The valve can be installed in vertical and horizontal orientations, adapting to various system layouts.

• Single-disc mechanism prevents backflow
• Spring-assisted for non-slamming operation
• Rated for pressure up to 365 psi

Product Highlights

The Victaulic V020717PH0 features durable ductile iron construction with an elastomer encapsulated disc and electroless nickel-plated seat. It includes an arrow indicator for proper orientation during installation, ensuring optimal performance in fire protection applications.

Product Information

Standard Information

• Brand: Victaulic
• Model: 717H

Technical Specifications

• Color: Black
• Connection Size: 2 in
• Connection Type: Grooved
• Dimension: 8.66 in L x 6.46 in W
• Disc Material: Cast Stainless Steel
• Finish: Painted
• Item Name: Check Valve
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM B733
• Material: Ductile Iron
• Pressure Rating: 365 psi
• Seal Material: Nitrile
• Sub Brand: FireLock
• Type: High Pressure
