VICTAULIC V020707900 FireLock Butterfly Valve 2 inch

Product Description

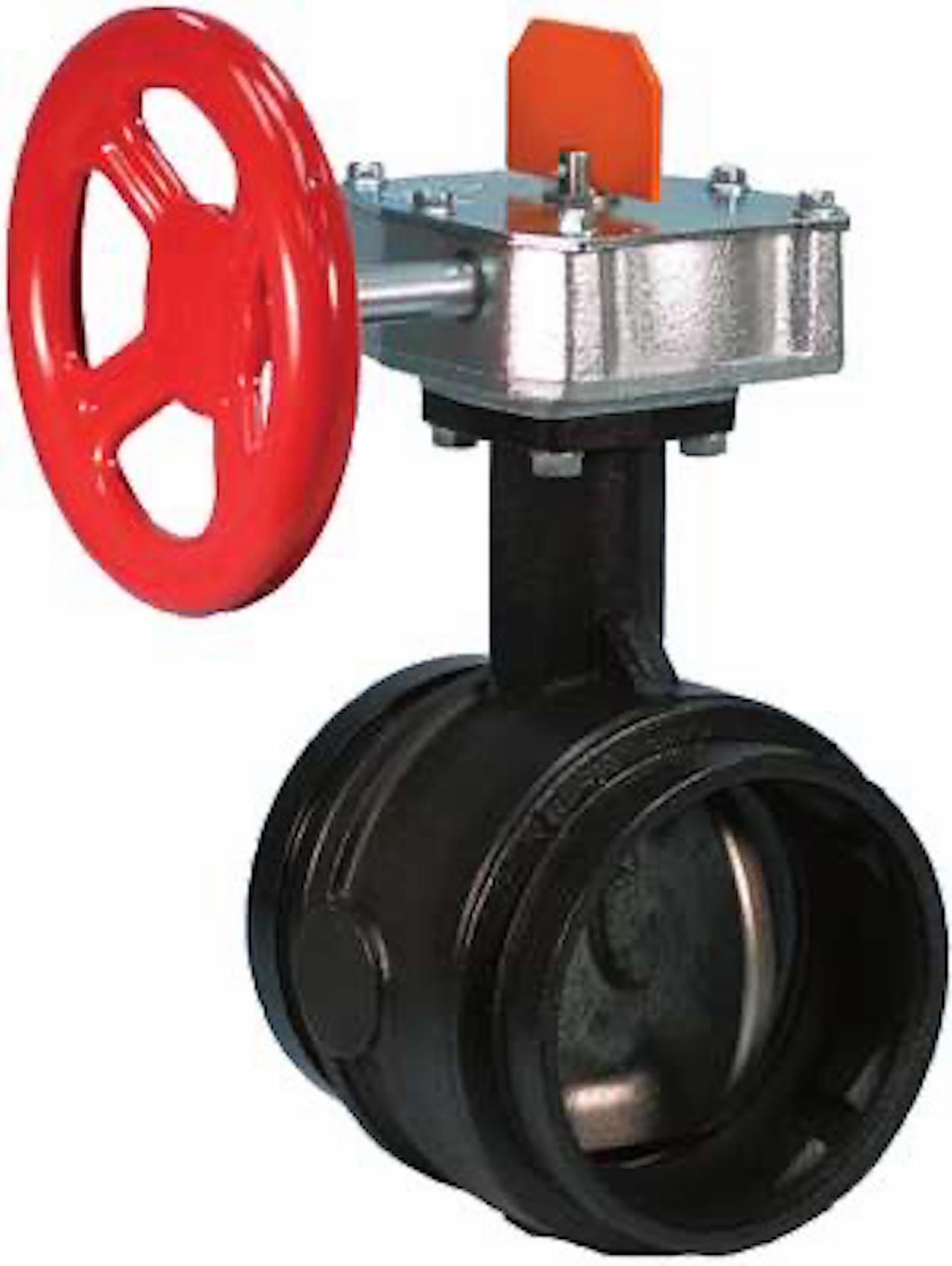

The VICTAULIC V020707900 is a two-inch FireLock Series 707C butterfly valve suitable for fire protection systems. This valve has a supervised closed design and features a grooved end style for easy connection. Constructed with a ductile iron body and 416 stainless steel trim, it ensures durability and reliability. The EPDM seat combined with a carbon steel retaining ring forms a strong seal. It is manually operated with a handwheel and is finished in black alkyd enamel.

• Designed for fire protection systems.
• Features grooved end connections for easy installation.
• Handwheel allows for manual operation.

Product Highlights

The VICTAULIC V020707900 is built to meet industry standards for fire safety and efficiency.

Product Information

Standard Information

• Series: 707C
• Nominal Size: 2 inches

Technical Specifications

• End Style: Grooved End
• Maximum Pressure: 300 psi
• Specifications Met: ASTM A536, ASTM B733, ASTM A582, C/US UL Listed, VDS Compliant, FM and LPCB Approved
• Media: Water
• Actuator Type: Handwheel
• Inlet to Outlet Length: 4.25 inches
• Top to Inlet Center: 6.41 inches
• Body Material: Ductile Iron
• Trim Material: 416 Stainless Steel
• Softgoods: EPDM Seat / Carbon Steel Retaining Ring
• Finish: Alkyd Enamel
• Color: Black
• Outer Diameter Dimensions: 2.375 inches
• Connection Size: 2 x 2
• Connection Type: Grv x Grv
• Item Weight: 8.2 lb
