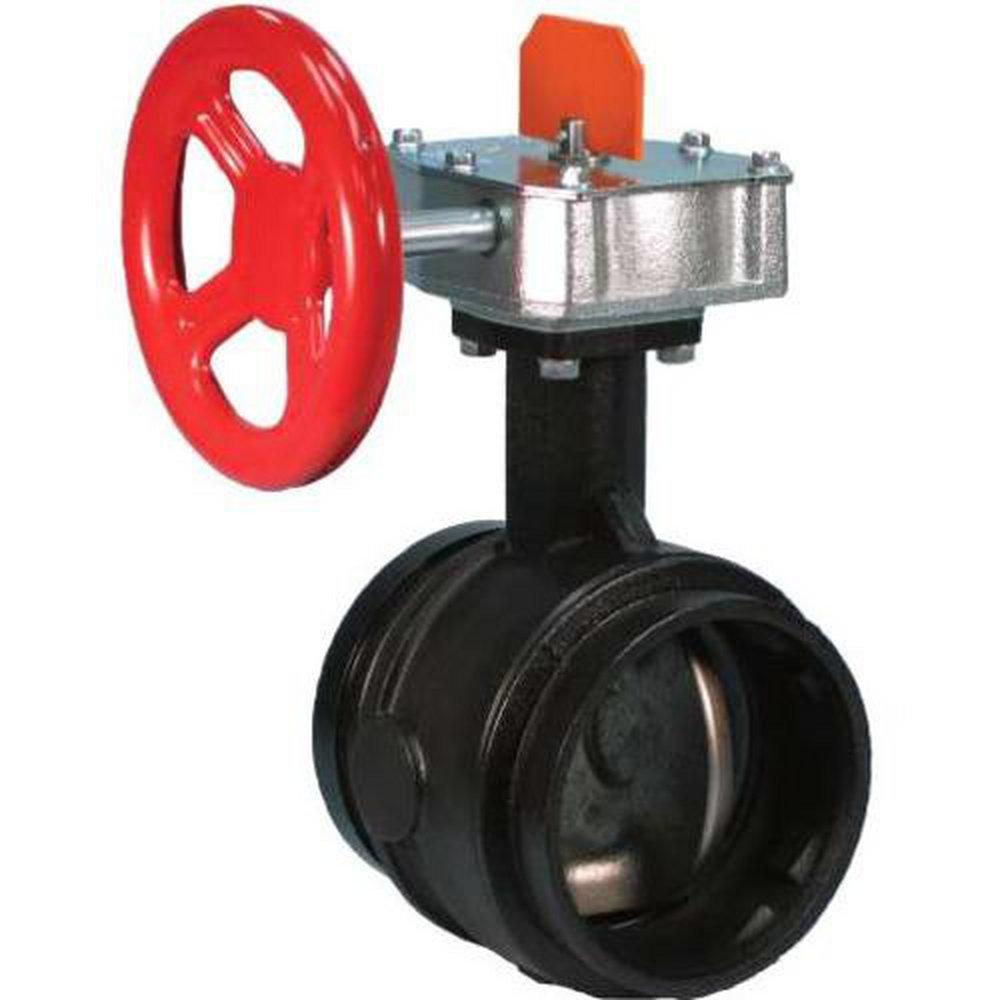

Victaulic V020705100 FireLock Style 705 2 in Ductile Iron Grooved EPDM Seat Hand Wheel Butterfly Valve

Product Description

The Victaulic V020705100 is a FireLock Style 705 butterfly valve designed for fire protection applications. It features a ductile iron body and disc along with an EPDM seat for reliable performance.

• 2 inch connection size with grooved connection type
• Suitable for pressures up to 300 psi
• Weatherproof actuator housing for indoor and outdoor use

Product Highlights

This valve is constructed with a ductile iron seal retainer and brass stem seal cartridge for enhanced durability. It also includes a supervised open switch for added safety.

Product Information

Standard Information

• Manufacturer: Victaulic
• Part Number: V020705100

Technical Specifications

• Connection Size: 2 inches
• Connection Type: Grooved
• Dimension: 4.25 inches L x 8.69 inches H
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Coefficient: 170 Cv
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM A582, C36000
• Pressure Rating: 300 psi
• Seat Material: Grade E EPDM
• Stem Material: 416 Stainless Steel
• Operator Type: Ductile Iron Handwheel
• Sub Brand: FireLock
