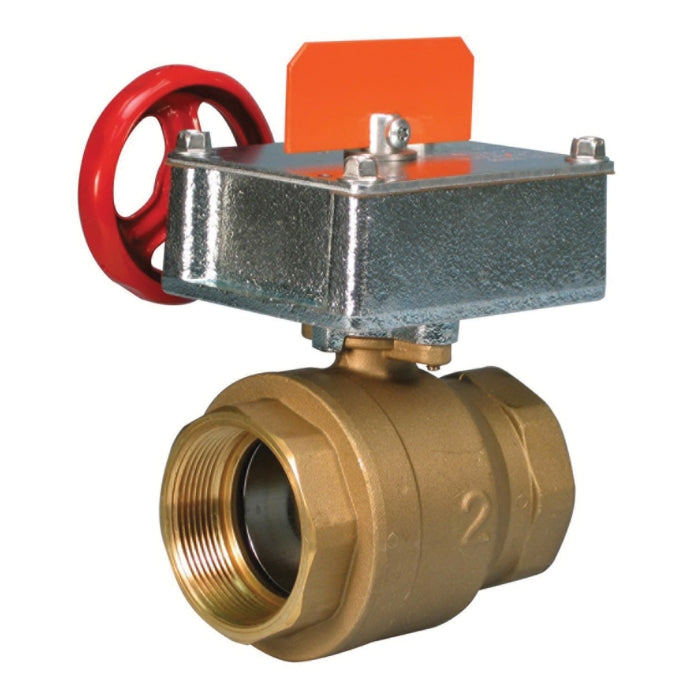

Victaulic V014728CT1 FireLock 728 Brass Full Port Ball Valve with Actuator 1-1/2 in Grooved

Product Description

The Victaulic V014728CT1 FireLock 728 is a full port brass ball valve with actuator. It is designed to provide reliable control for various fire protection systems. This valve features a grooved connection for easy installation and a robust construction for durability.

• UL/FM rated for up to 365 psi service.
• Chrome-plated brass ball with stainless steel stem.
• Approved for indoor and outdoor applications.

Product Highlights

This valve meets stringent UL and FM requirements, ensuring safety and performance standards are upheld.

Product Information

Standard Information

• Brand: Victaulic
• Type: Full Port

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1-1/2 inches
• Connection Type: Grooved
• Dimension: 3.66 inches L x 5.13 inches H
• Item Name: Ball Valve with Actuator
• Material Specifications: ASTM B124, ASTM B16 C36000
• Material: Brass
• Model: 728
• Pressure Rating: 365 psi
• Seat Material: Carbon Filled TFE
• Stem Material: 316 Stainless Steel
• Sub Brand: FireLock
