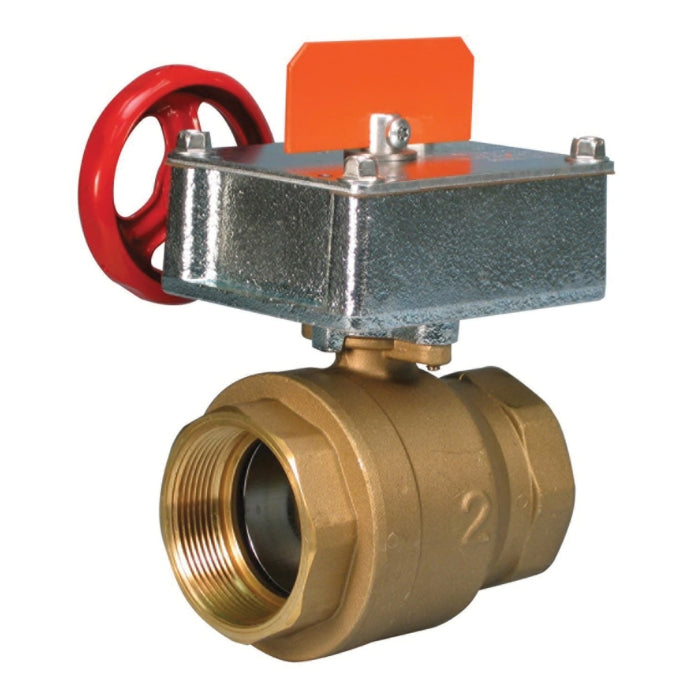

Victaulic V014728CT0 FireLock 728 Brass Full Port Ball Valve with Actuator 1-1/2 in NPT

Product Description

The Victaulic V014728CT0 is a fire protection valve designed for effective fluid control in a variety of applications. This ball valve is UL/FM rated for use in high-pressure environments up to three hundred sixty-five psi. The valve's full port design allows for maximum flow capacity, making it suitable for various fire protection setups.

• Full port design for maximum flow
• UL/FM rated for three hundred sixty-five psi service
• Chrome-plated brass ball with stainless steel stem

Product Highlights

This valve features a durable brass construction and reinforced seats for enhanced reliability and ease of operation. It is approved for both indoor and outdoor usage, ensuring versatility for many installations.

Product Information

Standard Information

• Brand: Victaulic
• Model: 728

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1-1/2 in
• Connection Type: NPT
• Dimension: 3.66 in L x 5.13 in H
• Material Specifications: ASTM B124, ASTM B16 C36000
• Material: Brass
• Pressure Rating: 365 psi
• Seat Material: Carbon Filled TFE
• Stem Material: 316 Stainless Steel
• Sub Brand: FireLock
• Type: Full Port
• Standards/Certifications: cULus Listed, FM, LPCB, Vds approved
