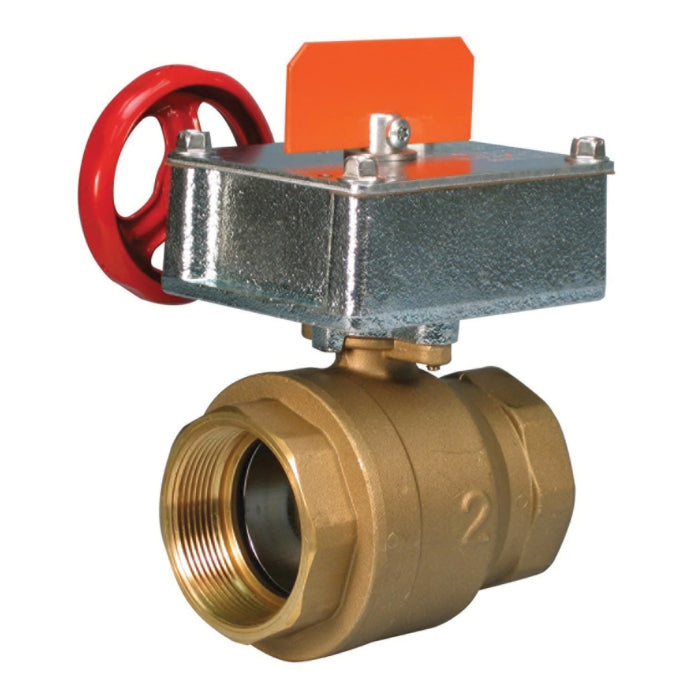

Victaulic V012728CT0 FireLock 728 Brass Full Port Ball Valve with Actuator (1-1/4 in) Replacement MPN

Product Description

The Victaulic V012728CT0 is a FireLock 728 brass full port ball valve equipped with an actuator. This product is designed for fire protection systems and is UL/FM rated for 365 psi service across all sizes, making it suitable for demanding applications.

• UL/FM rated for 365 psi service
• Available with grooved or threaded ends (NPT)
• Constructed from durable brass and features chrome-plated brass ball

Product Highlights

This valve supports efficient fluid control in fire protection systems, ensuring both reliability and safety.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI728T.114

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1-1/4 in
• Connection Type: NPT
• Dimension: 3.31 in L x 4.95 in H
• Item Name: Ball Valve with Actuator
• Material Specifications: ASTM B124, ASTM B16 C36000
• Material: Brass
• Model: 728
• Pressure Rating: 365 psi
• Seat Material: Carbon Filled TFE
• Stem Material: 316 Stainless Steel
• Sub Brand: FireLock
• Type: Full Port
