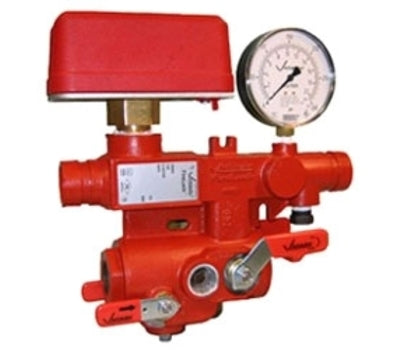

Victaulic V012247PF1 FireLock 1-1/4 in. Residential Zone-Control Riser Module

Product Description

The Victaulic V012247PF1 is a 1-1/4 inch residential zone-control riser module. Designed for NFPA 13, 13D, and 13R standards, this module is suited for both commercial and residential sprinkler systems. The compact design makes installation straightforward in zoned wet systems.

• Constructed with a cast body for durability
• Incorporates shut-off valve, test and drain valve, and flow switch
• Meets UL and FM approvals for reliability and safety

Product Highlights

This riser module is available in various sizes from one to two inches and is easy to install with grooved couplings. It also features a pressure gauge and an optional pressure relief valve kit.

Product Information

Standard Information

• Brand: Victaulic
• MPN: V012247PF1

Technical Specifications

• Size: 1-1/4 inches
• Working Pressure: Up to 365 PSI FM approved, up to 300 PSI UL listed
• Drain Port: 1 inch NPT
• End Connections: FNPT for 1 inch, grooved for 1-1/4 to 2 inches
• Flow Switch: UL listed and FM approved
• Pressure Relief Valve Kit: Optional, FM approved for up to 175 PSI
• Compliance: NFPA 13, 13D, and 13R
• Application: Zoned wet sprinkler systems
