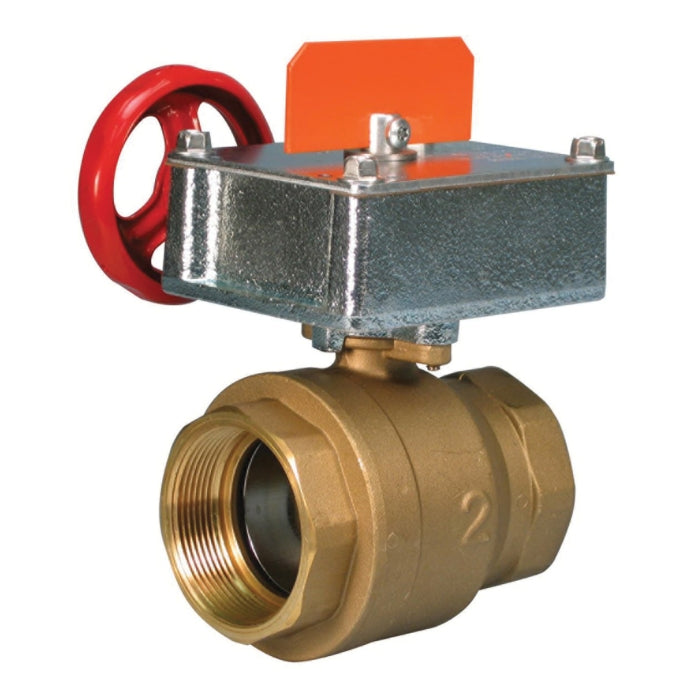

Victaulic V010728CT0 FireLock 728 Brass Full Port Ball Valve with Actuator 1 in NPT

Product Description

The Victaulic V010728CT0 is a fire protection ball valve designed for durability and reliability. This full port valve is UL/FM rated for 365 psi service, ensuring that it can handle demanding applications effectively. The valve features a brass body with a chrome-plated brass ball and a stainless steel stem, making it suitable for both indoor and outdoor use.

• UL/FM rated for 365 psi service
• Chrome-plated brass ball and stainless steel stem
• Reinforced seats for easier operation and durability

Product Highlights

This ball valve is ideal for fire protection systems, offering a robust design that meets high-pressure requirements.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1 in
• Connection Type: NPT
• Dimension: 2.84 in L x 4.74 in H
• Item Name: Ball Valve with Actuator
• Material Specifications: ASTM B124, ASTM B16 C36000
• Material: Brass
• Model: 728
• Pressure Rating: 365 psi
• Seat Material: Carbon Filled TFE
• Stem Material: 316 Stainless Steel
• Sub Brand: FireLock
• Type: Full Port
