Victaulic V00678YBFF Series 78Y Wye 3/4 in. Brass Female Threaded 20 Mesh Valve Strainer

Product Description

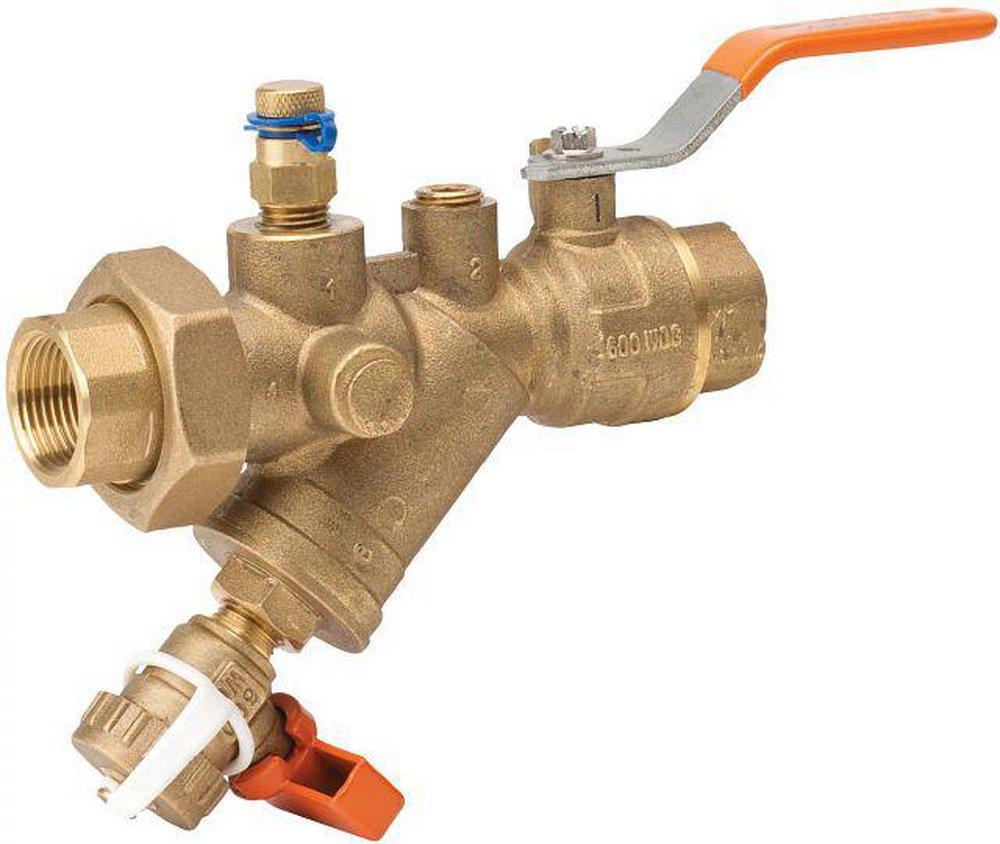

The VICTAULIC V00678YBFF Series 78Y is a wye-pattern valve strainer with a DZR brass body. It features a full port valve, strainer, and blow-down valve with flow measuring ports. Designed with female threaded end connections, it accommodates sizes from 1/2 to 2 inches. It is rated for pressures up to 400 psi and temperatures up to 230°F.

• DZR brass body
• Full port valve
• Strainer and blow down valve with flow measuring ports

Product Highlights

DZR brass body wye-pattern valve strainer with female threaded end connections, full port valve, strainer, and blow-down valve.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: V00678YBFF

Technical Specifications

• Collection: Series 78Y
• End Connection 1: Female Threaded
• End Connection 2: Female Threaded
• End Connections: Female Threaded
• Fitting Sizes: 3/4 in
• Length: 6.1 in
• Material: Brass
• Material Type: DZR
• Maximum Temperature: 230°F
• Mesh Size: 20
• Pressure - High: 400 psi
• Strainer Type: Wye
• UPC: 688304057748
• Series: 78Y
