Victaulic V00678UUFM Union Port Fitting 3/4 inches Female x 3/4 inches Male

Product Description

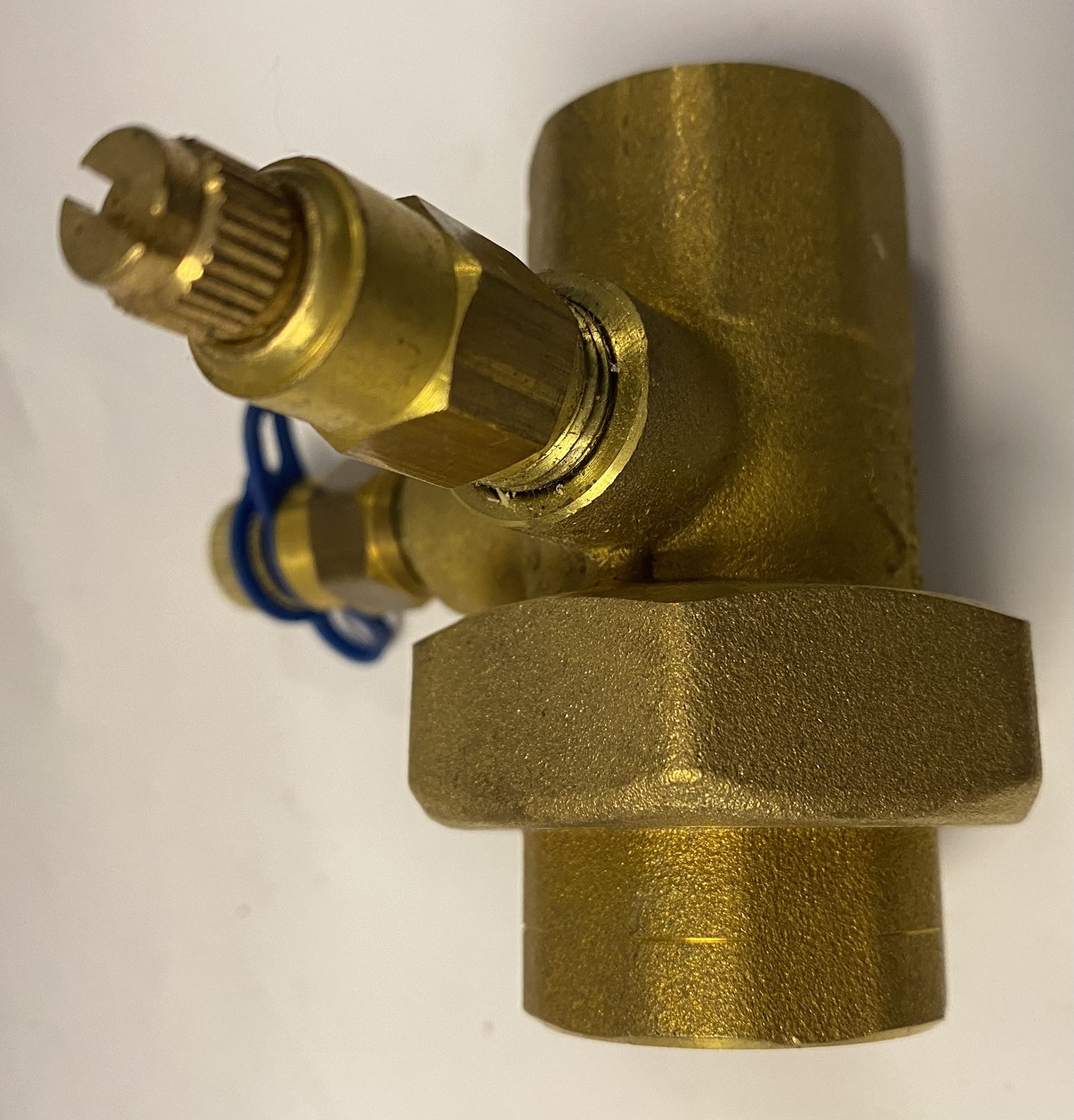

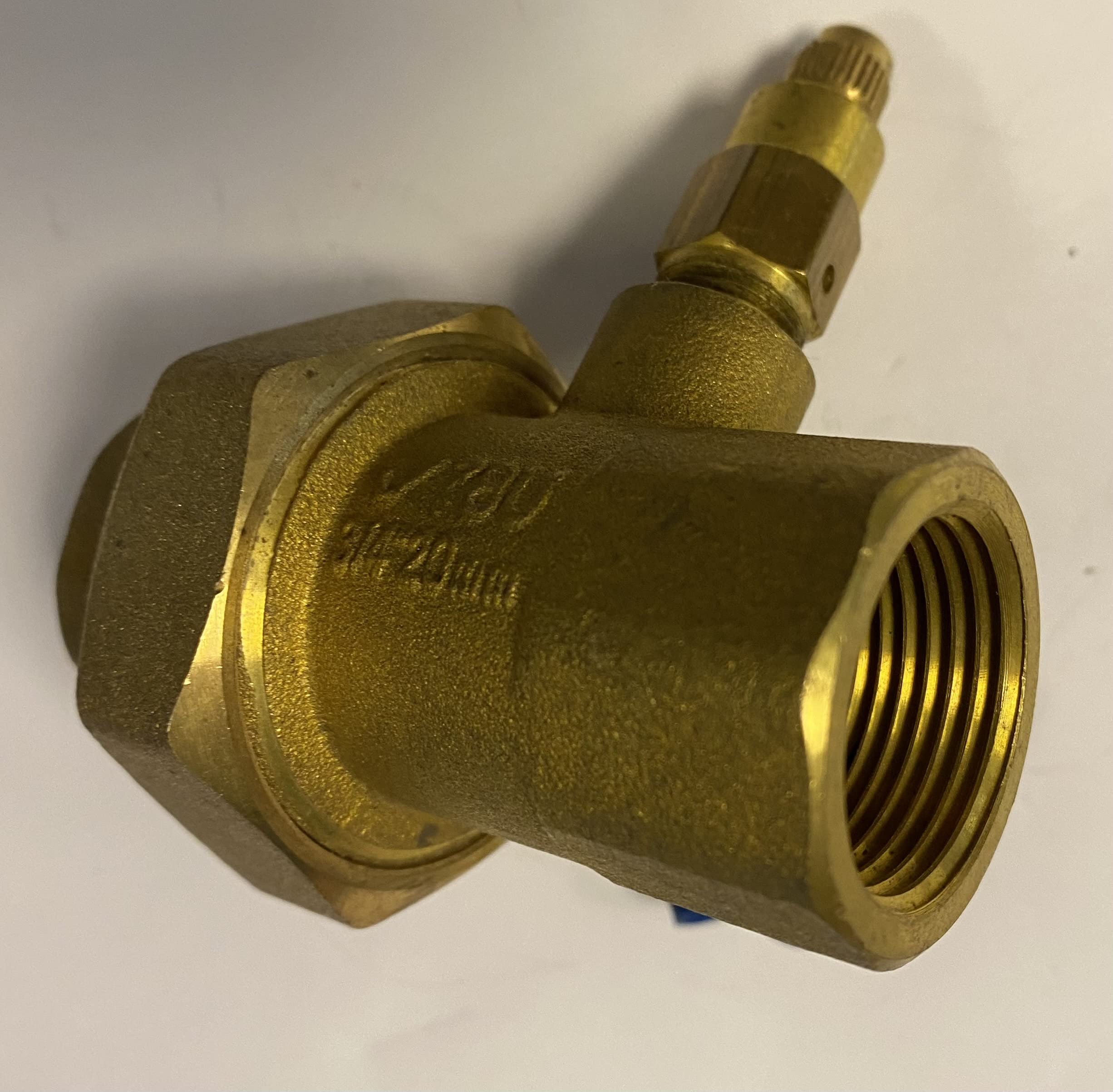

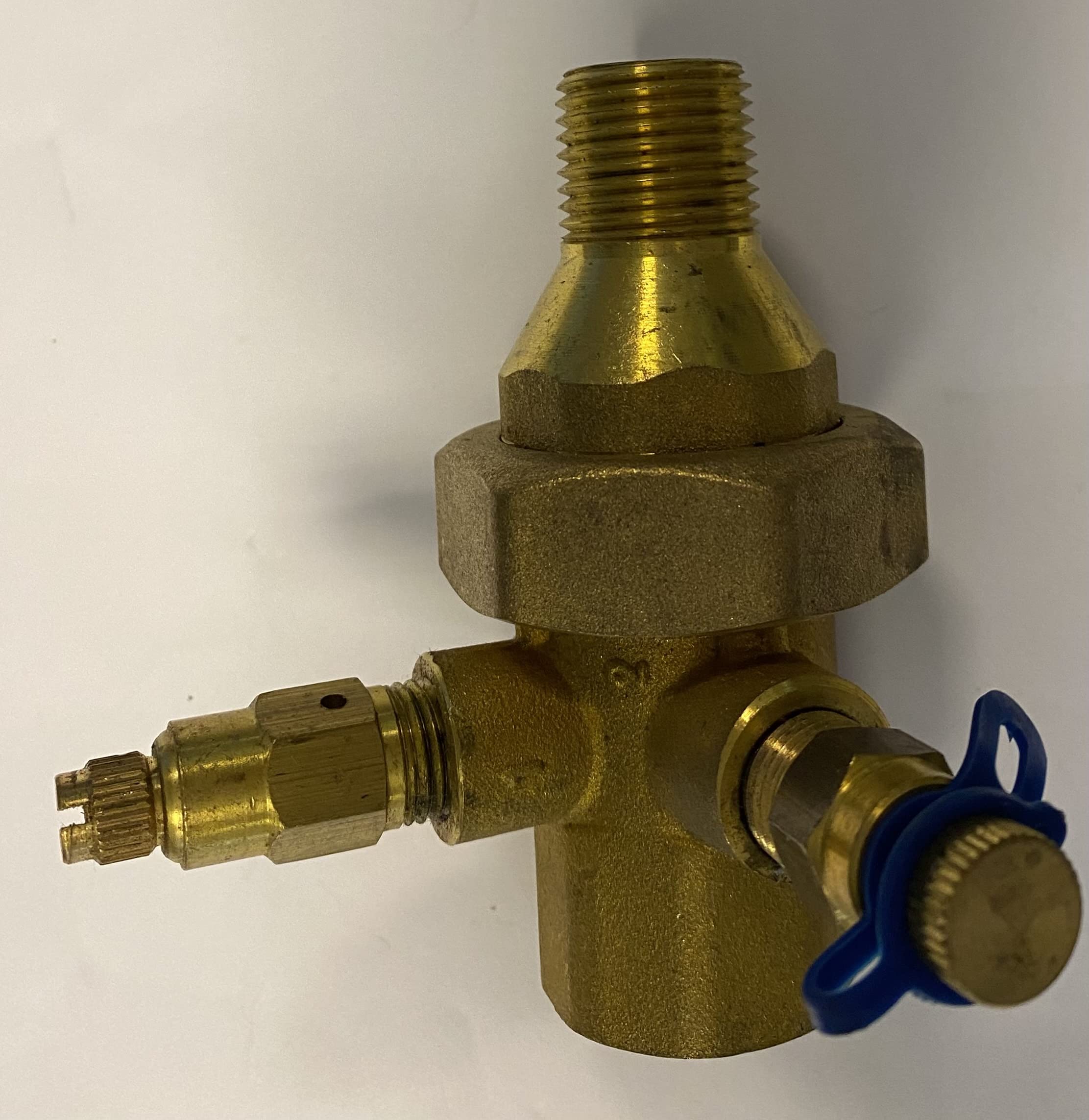

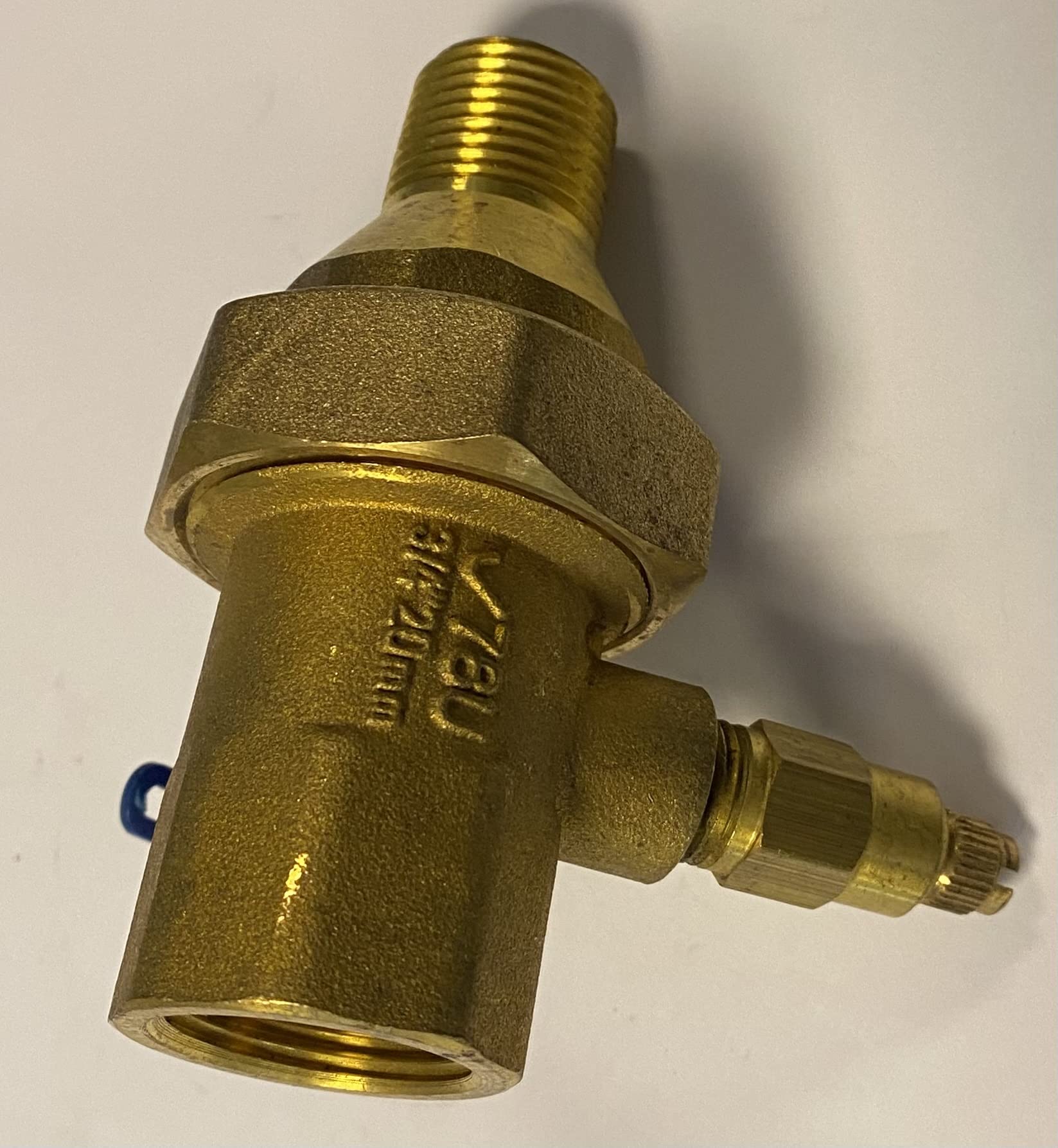

The VICTAULIC V00678UUFM Union Port Fitting features a 3/4" female connection and a 3/4" male connection. The body, union, and tailpiece are constructed from DZR brass, with an EPDM O-ring. The stem is made of brass, and the handle is steel with a vinyl grip. It is suitable for use in various plumbing and piping applications.

• Constructed from durable DZR brass and EPDM
• Features a 3/4" female and 3/4" male connection
• Maximum pressure rating of 400 psi

Product Highlights

The VICTAULIC Union Port Fitting is made of brass and EPDM, offering a secure and reliable connection for plumbing and piping systems.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: V00678UUFM

Technical Specifications

• Brand: Victaulic
• Manufacturer: Victaulic
• Product Type: HOSE_PIPE_FITTING
• Number of Items: 1.0
• Model / MPN: V00678UUFM
• Pressure Rating: 400 psi
• Connection Size 1: 3/4 in
• Connection Size 2: 3/4 in
• Connection Type 1: Female
• Connection Type 2: Male Union
• Length: 3.87 in
• Diameter: 1.05 in
• Material Construction: Brass
• Material: Brass
• Series: 78U Series
• Temperature Rating: -4 to 230 deg F
• Connector Type: Union
• Thread Size: 0.75
• Exterior Finish: Brass
• Thread Type: DZR
• Part Number: V00678UUFM
• Shape: union
• Measurement System: inch
