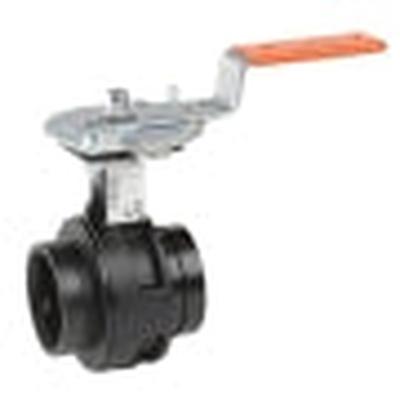

Victaulic V-024-761ST-2 761 Series MasterSeal 2-1/2 in. Ductile Iron Nitrile T-Handle Butterfly Valve

Product Description

The Victaulic V-024-761ST-2 is a 761 Series MasterSeal butterfly valve designed for reliable performance in various piping applications. This valve has a connection size of two and one-half inches and is made from ductile iron with a black alkyd enamel coating. It features a T-handle design for easy operation.

• Rated for pressures up to three hundred psi.
• Suitable for bi-directional services.
• Constructed for use in carbon steel, ductile iron, and plastic piping systems.

Product Highlights

This product is ideal for dead end services and can accommodate full vacuum to high-pressure applications.

Product Information

Standard Information

• Brand: Victaulic
• MPN: V-024-761ST-2

Technical Specifications

• Connection Size: 2-1/2 in
• Connection Type: Grooved
• Dimension: 3.77 in L x 4 in Dia
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Coefficient: 260 Cv
• Item Name: Butterfly Valve with 10-Position Handle and Memory Stop
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: 761
• Operator Type: Zinc-Plated Carbon Steel 10-Position Handle
• Pressure Rating: 300 psi
• Seal Material: Nitrile
• Seat Material: Nitrile
• Stem Material: 416 Stainless Steel
• Sub Brand: Vic-300, MasterSeal
• Temperature Rating: 10 - 150 deg F
