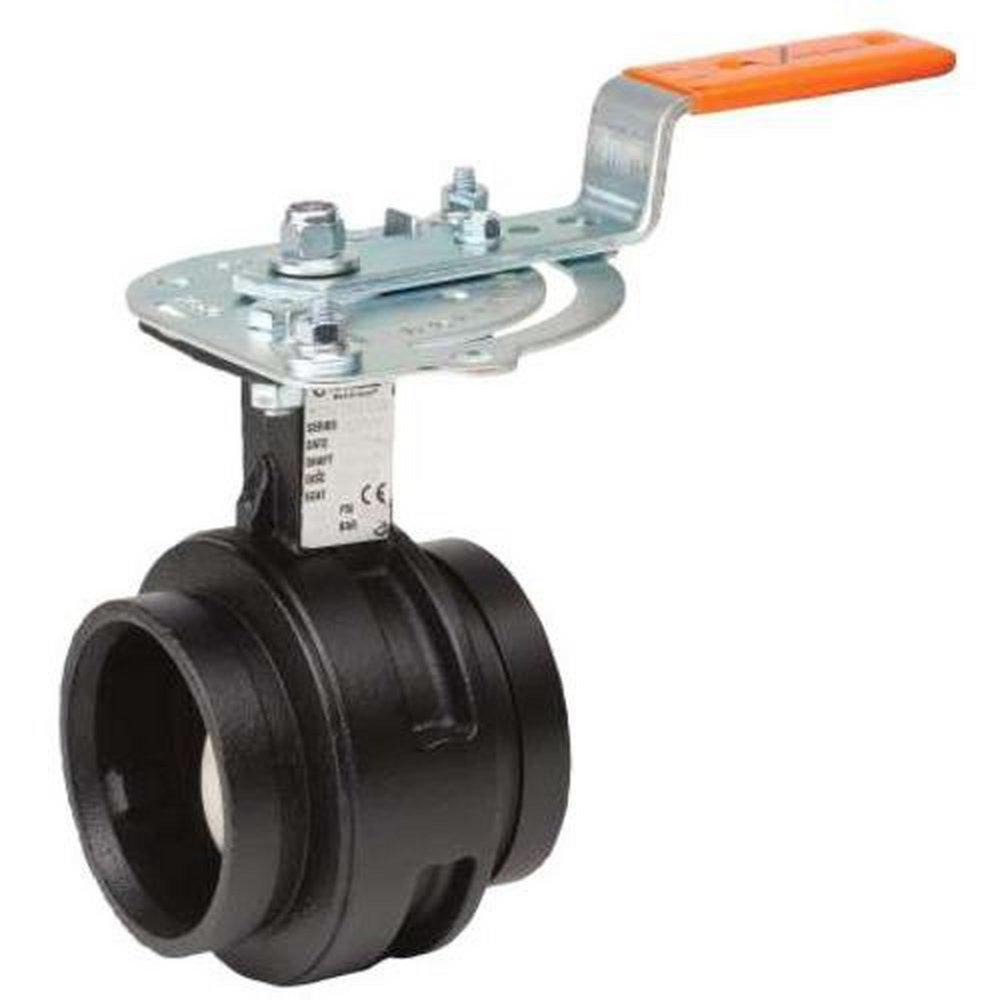

Victaulic V-020-761SE-2 761 Series MasterSeal 2 in Ductile Iron Grooved EPDM Locking Lever Handle Butterfly Valve

Product Description

The Victaulic V-020-761SE-2 is a two-inch butterfly valve made from ductile iron, designed for various piping applications. This valve features a grooved connection and an EPDM seal. It operates effectively under pressure and is suitable for both bi-directional and dead-end services.

• Constructed with a ductile iron body.
• Rated for pressures up to 300 psi.
• Includes a 10-position handle and memory stop for precise control.

Product Highlights

This valve is designed for durability and reliable operation in HVAC, plumbing, and industrial systems. It offers efficient flow control in piping configurations.

Product Information

Standard Information

• Brand: Victaulic
• MPN: V-020-761SE-2

Technical Specifications

• Connection Size: 2 inches
• Connection Type: Grooved
• Dimension: 3.21 inches long x 3-1/4 inches diameter
• Disc Material: Ductile Iron
• Finish: Black Alkyd Enamel Coated
• Flow Coefficient: 115 Cv
• Material Specifications: ASTM A536, Grade 65-45-12
• Operator Type: Zinc-Plated Carbon Steel 10-Position Handle
• Pressure Rating: 300 psi
• Seal Material: EPDM
• Seat Material: EPDM
• Stem Material: 416 Stainless Steel
• Temperature Rating: -30 to 230 degrees F
