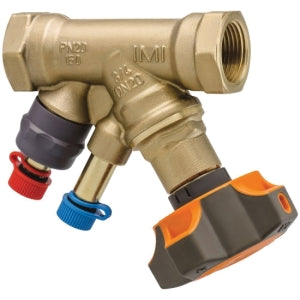

VICTAULIC V-010-787-CBV V-010-787-CBV Series 787 TA Manual Circuit Balancing Valve

Product Description

The Victaulic V-010-787-CBV is a manual circuit balancing valve designed to maintain the right flow in various systems. It features a one-inch FNPT connection type and is made with ametal, offering durability and reliability. The valve operates under pressure ratings of up to three hundred PSI and accommodates flow rates from three point nine to ten GPM. A handwheel mechanism provides easy operation and control, while a red polyamide plastic handle ensures a secure grip.

• Nominal size of one inch.
• Handwheel operation for precise adjustments.
• EPDM seal material for long-lasting performance.

Product Highlights

This valve is suitable for a wide temperature range from minus four to two hundred fifty degrees Fahrenheit, making it effective for various applications.

Product Information

Standard Information

• Item Name: TA Manual Circuit Balancing Valve
• Series/Model: Series 787

Technical Specifications

• Nominal Size: 1 inch
• Connection Type: FNPT
• Pressure Rating: 300 PSI
• Flow Rate: 3.9 - 10 GPM
• Temperature Rating: -4 to 250 degrees Fahrenheit
• Body Material: Ametal (Pressure Die Cast, Nonporous Copper Alloy)
• Operator Type: Handwheel
• Handle Material: Red Polyamide Plastic
• Stem Material: Ametal
• Seat Material: Ametal
• Seal Material: EPDM
• Width: 4.31 inches
• Lead Free: No
• Other Dimensions: 1.315 inches Actual Outside Diameter, 4.5 inches Inlet Center To Top Of Valve
• Weight: 2 pounds
