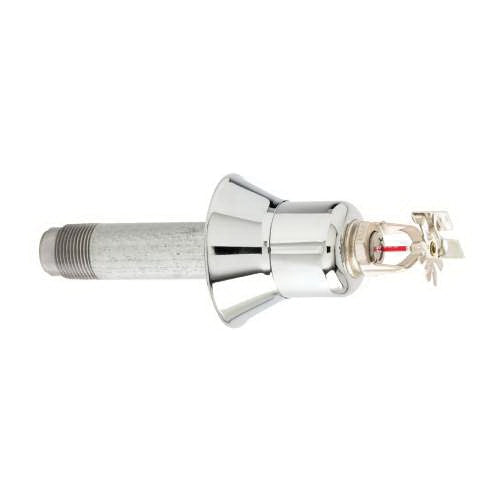

Victaulic S363CCQ293 FireLock V3610 Chrome-Plated Quick Response Horizontal Sidewall Sprinkler 1 in NPT Replacement MPN

Product Description

The Victaulic S363CCQ293 is a fire protection sprinkler designed for effective use in various environments. This quick response horizontal sidewall sprinkler measures one inch NPT and operates at a temperature rating of one hundred fifty-five degrees Fahrenheit. It features a K-factor of 5.6 and a pipe length of sixteen inches, making it suitable for light hazard conditions.

• Utilizes a frangible glass bulb for operation.
• Approved for freezing environments.
• Constructed from cold-rolled steel and brass materials.

Product Highlights

This model is part of the FireLock series and is ideal for conditions where sediment accumulation is a concern. The sprinkler opens automatically when the bulb reaches its rated temperature, allowing water to flow through and be distributed effectively.

Product Information

Standard Information

• Brand: Victaulic
• Product Type: Fire Sprinkler

Technical Specifications

• Connection Type: NPT
• Finish: Chrome-Plated
• Model: V3610
• K-Factor: 5.6
• Nominal Size: 1 in
• Orifice Size: 1/2 in
• Pipe Length: 16 in
• Pressure Rating: 175 psi
• Series: V3
• Sub Brand: FireLock
• Temperature Rating: 155 deg F
• Type: Quick Response
• Standards/Certifications: cULus listed, FM, CCC approved
