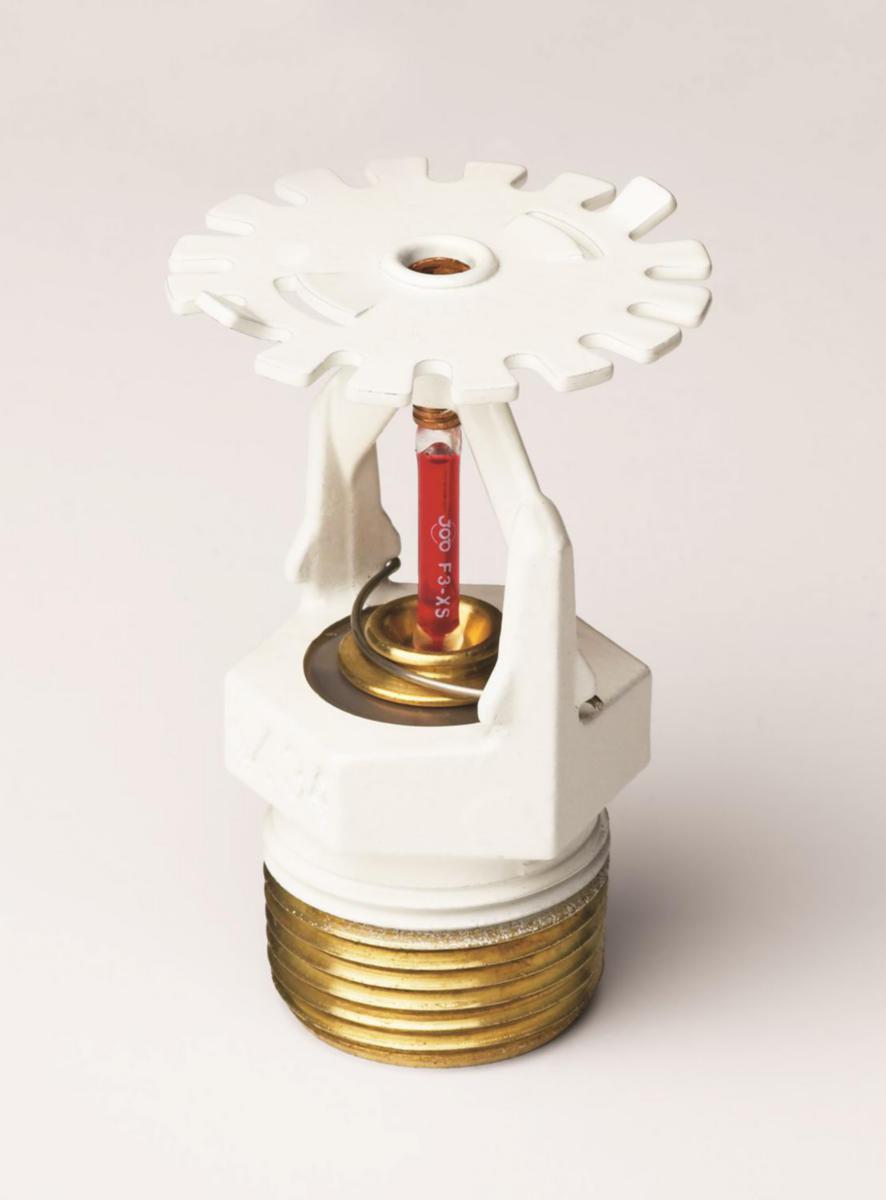

VICTAULIC S342FCS740 Sprinkler Heads Model V3421 SR FireLock - Down 3/4 inches

Product Description

The VICTAULIC S342FCS740 Sprinkler Heads Model V3421 SR FireLock is suitable for overhead systems with a maximum coverage area of thirty-seven point two square meters. It installs easily, allowing tight connections from multiple angles with a special wrench. This sprinkler can extend coverage up to thirty-seven point two square meters, complying with NFPA 13 standards.

• Designed for use in overhead systems
• Maximum coverage area of thirty-seven point two square meters
• Easy installation process

Product Highlights

This sprinkler head is reliable and easy to install in a variety of environments.

Product Information

Standard Information

• Model: V3421
• Response: Standard

Technical Specifications

• K-factor: 200
• External thread: 3/4 inches
• Release temperature: sixty-eight degrees Celsius
• Length: forty-six mm
• Sprinkler type: SSP
• Connection: External thread, conical (NPT)
• Material: Brass
• UL quality mark: Yes
• CE-certification: Yes
• K-factor, nominal dimension: 20
• External pipe diameter connection: twenty mm
• Quantity in FP: 1
• Depth: forty-one mm
• Width: forty-one mm
• Height: sixty-five mm
