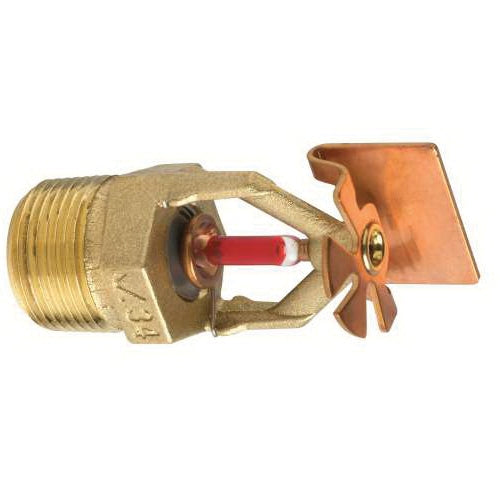

Victaulic S342CJS510 FireLock V3409 Standard Response Horizontal Sidewall Sprinkler 3/4 in NPT

Product Description

The Victaulic S342CJS510 is a FireLock V3409 standard response horizontal sidewall sprinkler designed for effective fire protection. This sprinkler features a three-fourths inch National Pipe Thread (NPT) connection and is capable of withstanding temperatures up to 286 degrees Fahrenheit. It utilizes a crescent-shaped discharge pattern, making it suitable for installation along or under beams or ceilings.

• Standard response design for fire safety applications
• Pressure rating of 250 psi
• Complies with cULus and CTP certifications

Product Highlights

This sprinkler is built for commercial applications, ensuring large discharge capacity while minimizing assembly effort due to its hex-shaped wrench boss. It also features a durable construction with various temperature ratings and finishes available.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Type: NPT
• Dimension: 1-5/15 in H
• Finish: Plain Brass
• Item Name: Horizontal Sidewall Sprinkler
• K-Factor: 8
• Model: V3409
• Nominal Size: 3/4 in
• Orifice Size: 17/32 in
• Pressure Rating: 250 psi
• Sub Brand: FireLock
• Temperature Rating: 286 deg F
• Type: Standard Response
