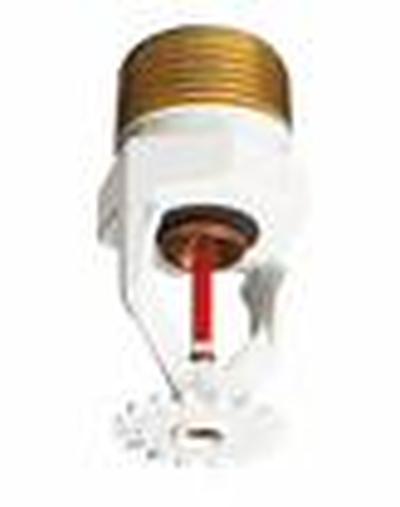

Victaulic S342BCQ510 FireLock Quick Response Pendent Sprinkler

Product Description

The Victaulic S342BCQ510 is a quick response pendent sprinkler designed for effective fire suppression. This model features a three-quarter inch MPT connection and is constructed from durable brass. It has a K-factor of 8.0 and activates at a temperature of 155°F using a glass bulb heat element. The sprinkler is suitable for recessed installations and functions efficiently in systems with a maximum working water pressure of 175 PSI.

• Pendent sprinkler head with a three-quarter inch MPT connection.
• Activates at 155°F with a K-factor of 8.0.
• UL Listed and FM Approved for reliability in fire protection systems.

Product Highlights

The Victaulic FireLock sprinkler is designed for standard coverage and is ideal for various fire suppression applications. Its brass construction ensures durability and longevity.

Product Information

Standard Information

• Connection Size: three-quarter inch
• Connection Type: MPT

Technical Specifications

• Item Weight: 0.28 lb.
• Manufacturer Part Number: S342BCQ510
• Replaces Manufacturer Part Numbers: GL8101
• Model: FireLock FL-QR
• Head Type: Pendent
• Finish: Brass
• K Factor: 8.0K
• Response Type: Quick Response (QR)
• Temperature Activation: 155°F
• Coverage Type: Standard Coverage
• Material: Brass Frame, Bronze Deflector
• Maximum Working Water Pressure: 175 PSI
• Escutcheon Type: Recessed
• Dimensions: Length 1.31 in., Width 1.31 in., Height 2.5 in.
