Victaulic S342AJS610 FireLock V3403 Plain Brass Standard Response Upright Sprinkler 3/4 in NPT Replacement MPN

Product Description

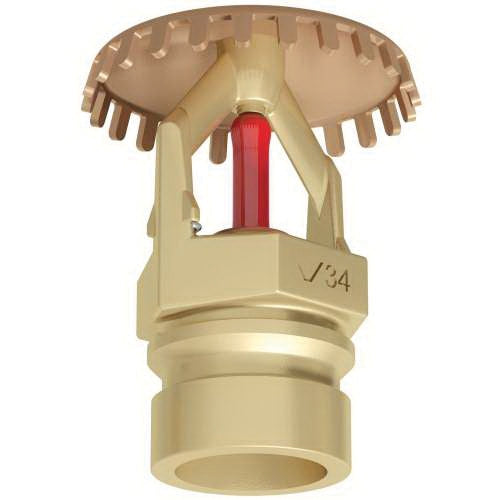

The Victaulic S342AJS610 is a FireLock V3403 standard response upright sprinkler. This model operates with a three-fourths inch NPT connection and functions effectively at a temperature rating of two hundred eighty-six degrees Fahrenheit. It is designed primarily for ordinary and extra storage applications.

• Standard response type for reliable operation
• Certified for various standards including cULus and FM
• Constructed with a brass load screw and pipe cap

Product Highlights

This sprinkler is ideal for use in commercial spaces requiring a reliable fire protection system.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Type: NPT
• Dimension: 2-1/2 in H
• Finish: Plain Brass
• Item Name: Upright Sprinkler
• K-Factor: 11.2
• Model: V3403
• Nominal Size: 3/4 in
• Orifice Size: 5/8 in
• Pressure Rating: 250, 175 psi
• Sub Brand: FireLock
• Temperature Rating: 286 deg F
• Type: Standard Response
