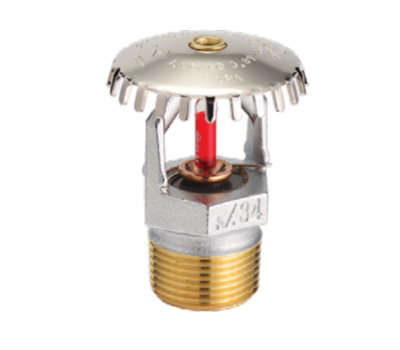

Victaulic S342AFS610 V3403 200 Degrees F 3/4 in. K11.2 Standard Response Upright Fire Sprinkler

Product Description

The Victaulic S342AFS610 is a fire sprinkler designed for fire protection systems. This unit features a brass construction and a standard response mechanism. It is suitable for light, ordinary, and extra storage applications.

• Suitable for light, ordinary, and extra storage applications
• Standard response design
• cULus listed, FM, CNBOP approved

Product Highlights

This fire sprinkler ensures effective fire protection in various environments with reliable performance.

Product Information

Standard Information

• Catalog Number: S342AFS610
• Color/Finish: Brass

Technical Specifications

• Connection Size: 3/4 in.
• Connection Type: NPT
• K-Factor: 11.2
• Material: Die Cast Brass
• Maximum Operating Pressure: 175 PSI
• Maximum Operating Temperature: 200 degrees F
• Minimum Operating Pressure: 7 PSI
• Orientation: Upright
• Product Type: Fire Sprinkler
• Special Features: Standard Response
• Temperature Rating: 200 degrees F
