Victaulic S342AFS510 FireLock V3401 Plain Brass Standard Response Upright Sprinkler 3/4 in NPT

Product Description

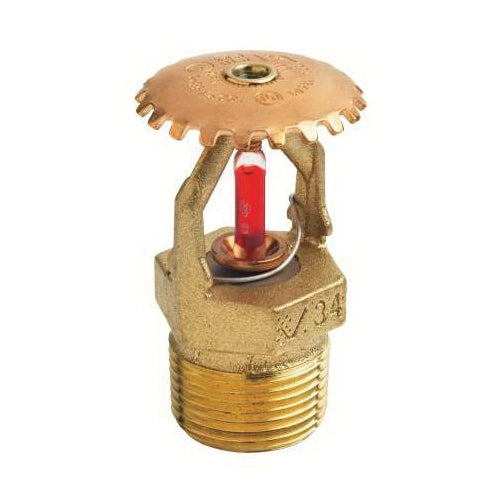

The Victaulic S342AFS510 is a FireLock V3401 upright sprinkler designed for effective fire protection. This model features a three-quarter inch National Pipe Thread (NPT) connection. It operates at a temperature rating of 200 degrees Fahrenheit and has a K-Factor of 8.

• Constructed with a light, ordinary five millimeter glass bulb filled with glycerin.
• Includes a bronze load screw and bronze pipe cap.
• Meets multiple certifications including cULus, FM approved, and CE certified.

Product Highlights

This sprinkler is suitable for commercial applications, providing reliable performance and long-lasting durability.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Type: NPT
• Dimension: 2-1/2 inches H
• Finish: Plain Brass
• K-Factor: 8
• Model: V3401
• Nominal Size: 3/4 inches
• Orifice Size: 17/32 inches
• Pressure Rating: 250, 175 psi
