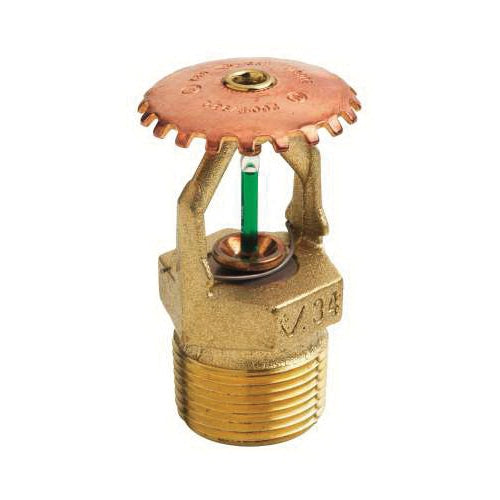

Victaulic S342AFQ510 FireLock V3402 Plain Brass Quick Response Upright Sprinkler 3/4 in

Product Description

The Victaulic S342AFQ510 is a quick response upright sprinkler designed for fire protection systems. This model features a plain brass finish and is ideal for commercial applications. The sprinkler has a nominal size of three-fourths inch, ensuring compatibility with NPT connections.

• Light, ordinary 3 mm glass bulb
• Bronze load screw and pipe cap
• Temperature rating of 200 degrees F

Product Highlights

Reliable performance in fire protection with various certifications.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: V3402
• Nominal Size: 3/4 in
• Orifice Size: 17/32 in
• K-Factor: 8
• Pressure Rating: 250, 175 psi
• Connection Type: NPT
• Dimension: 2-1/2 in H
• Sub Brand: FireLock
• Temperature Rating: 200 deg F
• Standards/Certifications: cULus, FM approved, LPCB, CTP, CCC, VdS, CE 0786, CCCf, CCC certified
• Applications: For commercial applications
